Interchange Piston & ring set - 4MKRY8098-0.50

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	96.00mm
Size:	0.50mm/0.20"
Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	78.50mm

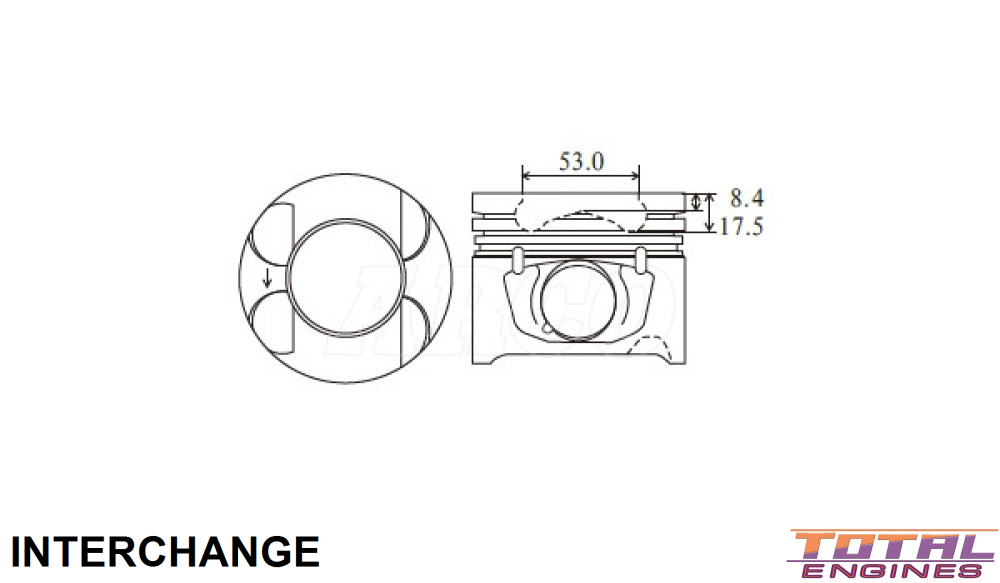

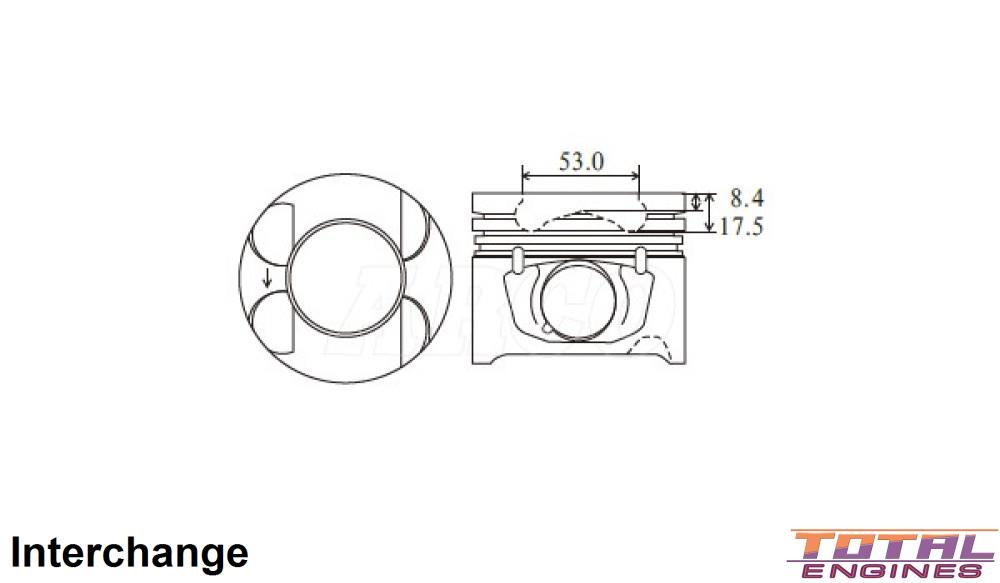

Comp Height:	49.60mm - 8.40mm -17.50mm
Combustion Bowl OD:	53.00mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm

Description

53.00mm Combustion Bowl
