Interchange >> Interchange Piston & ring set - PKHD4HA-0.50

Interchange Piston & ring set - PKHD4HA-0.50

Part
Interchange logo

Interchange Piston & ring set - PKHD4HA-0.50

Out Of Stock

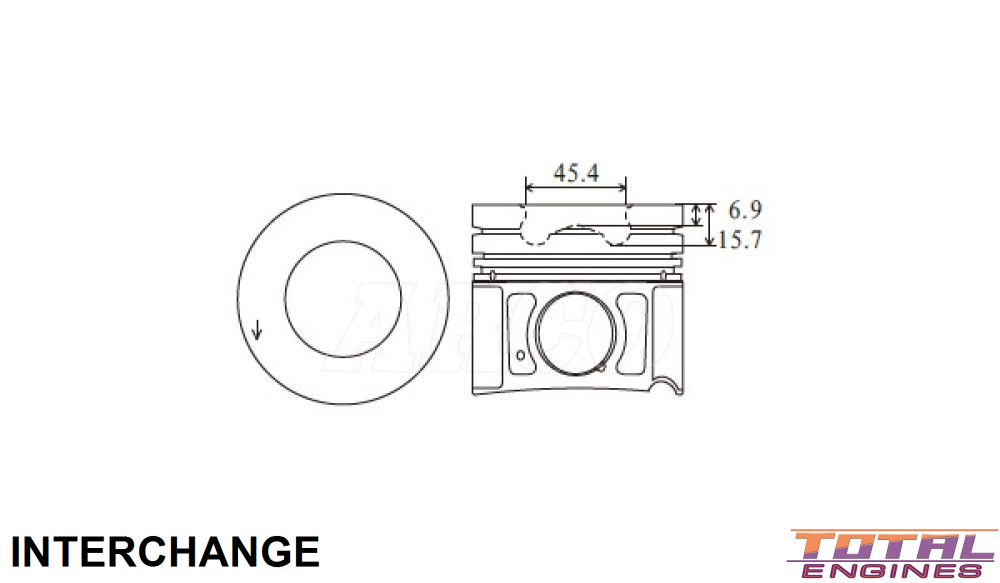

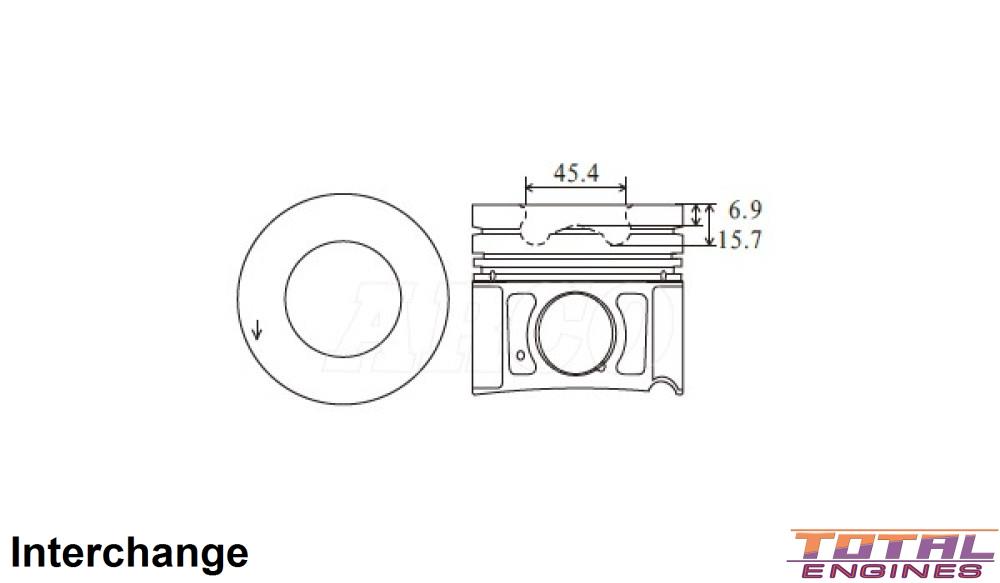

Specifications
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Pin Size: 34.00mm x 66.00mm
Combustion Bowl OD: 45.40mm
Comp Height: 48.90mm - 6.90mm -15.70mm
Length: 75.90mm
Piston Type: Cast
Head Type: Dish top
Size: 0.50mm/.020"
Std Bore Size: 84.00mm
Piston Set: 4 x Pistons, Pins & Rings

Description

Alfin insert, Oil gallery cooling, MOS2 coated skirts
