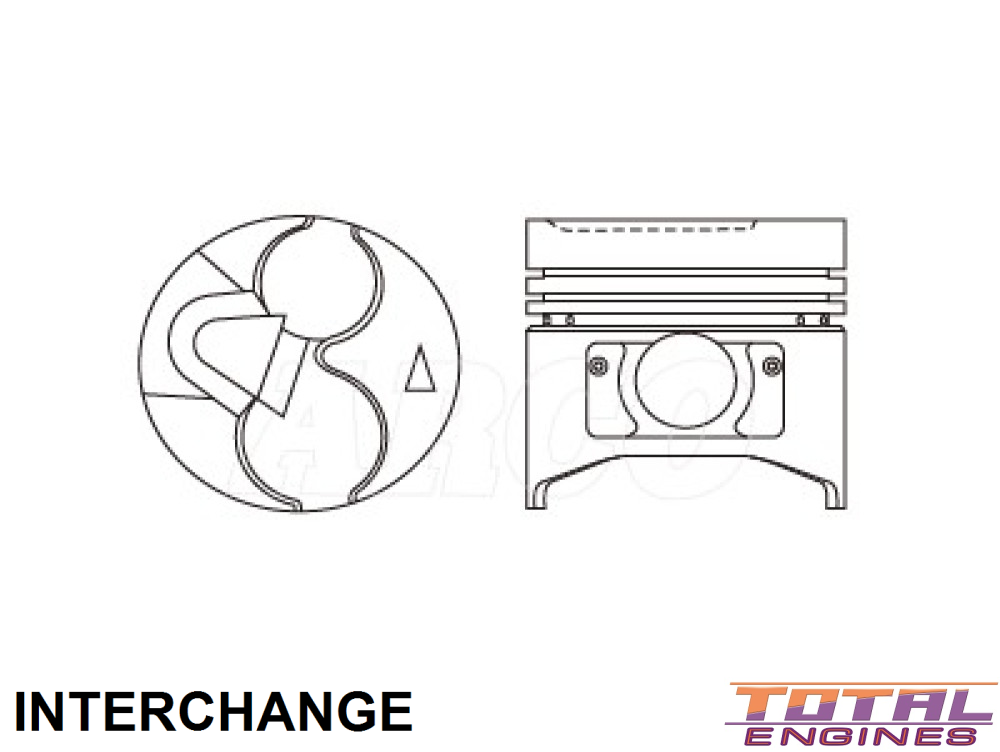

Interchange Piston & ring set - PKM4D56-0.50

Part

Interchange Piston & ring set - PKM4D56-0.50

Out Of Stock

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	91.10mm
Size:	0.50mm/.020"
Head Type:	Flat Top Two Valve Reliefs
Piston Type:	Cast
Length:	88.70mm
Comp Height:	48.70mm - 2.60mm - 2.90mm
Pin Size:	29.00mm x 75.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm
