Interchange >> Interchange Piston & ring set - PKM4D56TN-A-1.0

Interchange Piston & ring set - PKM4D56TN-A-1.0

Part
Interchange logo

Interchange Piston & ring set - PKM4D56TN-A-1.0

Out Of Stock

Specifications
2nd Ring Width: 2.00mm Half Keystone
Top Ring Width: 2.50mm Half Keystone
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 32.00mm x 75.00mm

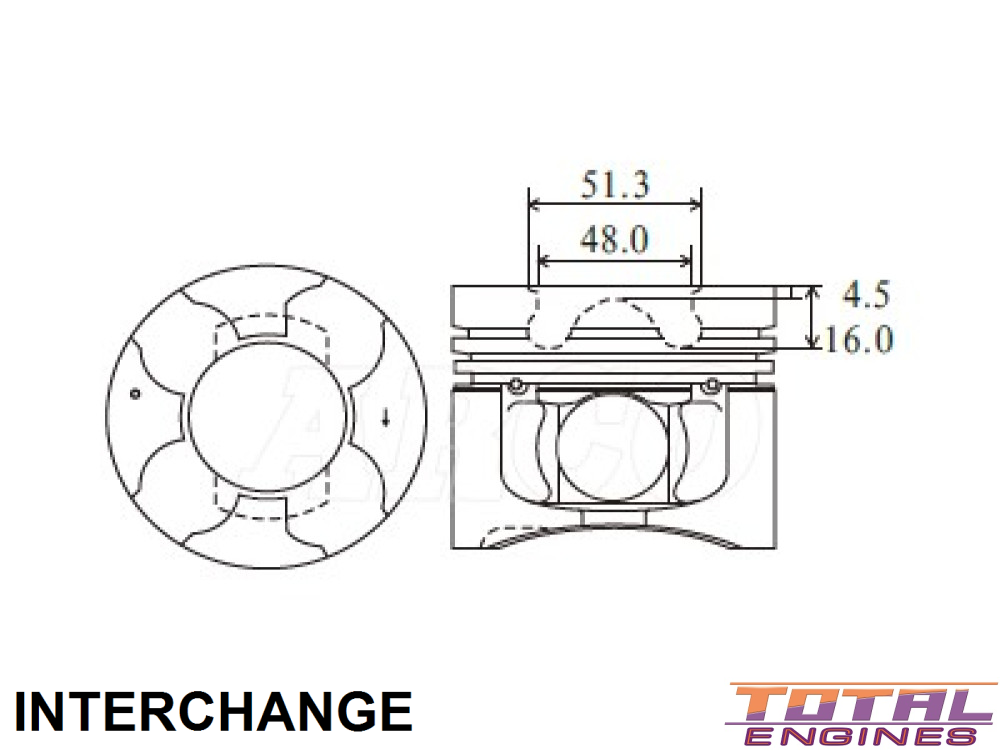

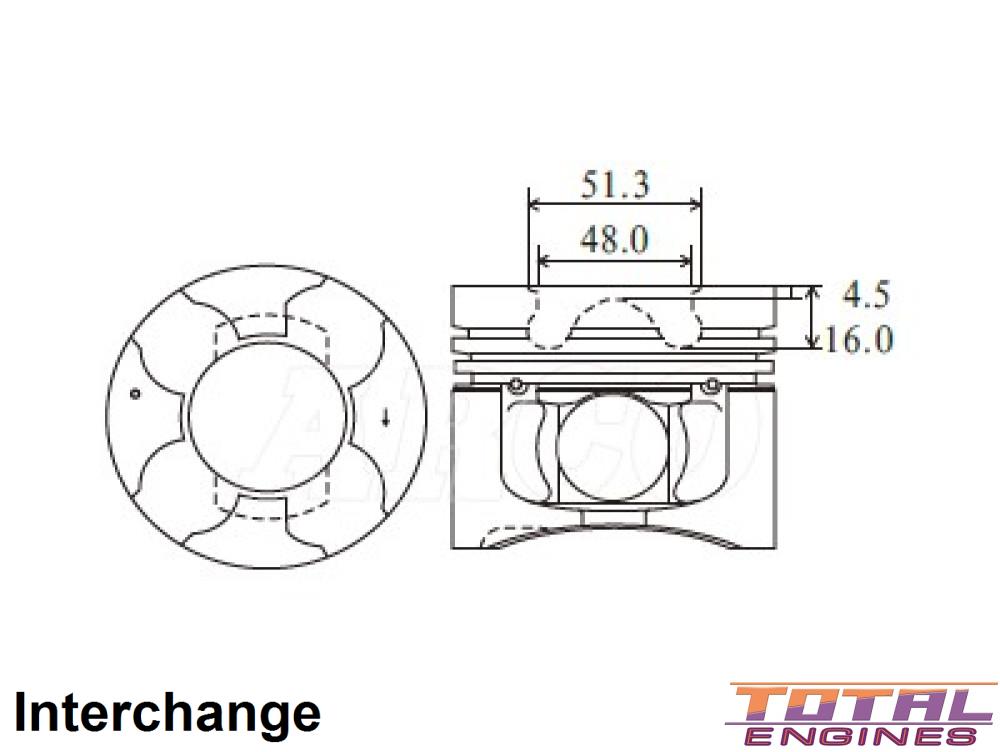

Comp Height: 48.20mm - 4.50mm - 16.00mm
Length: 78.20mm
Piston Type: Cast
Head Type: Dish Top Four valve Reliefs
Size: 1.00mm/.040"
Std Bore Size: 91.10mm
Piston Set: 4 x Pistons, Pins & Rings
Oil Ring Width: 3.00mm

Description

Suits 131kw Engines With 48mm Combustion Bowl

Alfin Insert, Oil Gallery Cooling, Anodized Crown & MOS2 Skirts
