Interchange Piston & ring set - PKNRD28TI-A-0.5

Specifications
Oil Ring Width:	4.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.00mm Half Keystone
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	27.00mm x 61.50mm
Comp Height:	46.80mm - 0.70mm - 1.80mm
Length:	78.30mm
Piston Type:	Cast

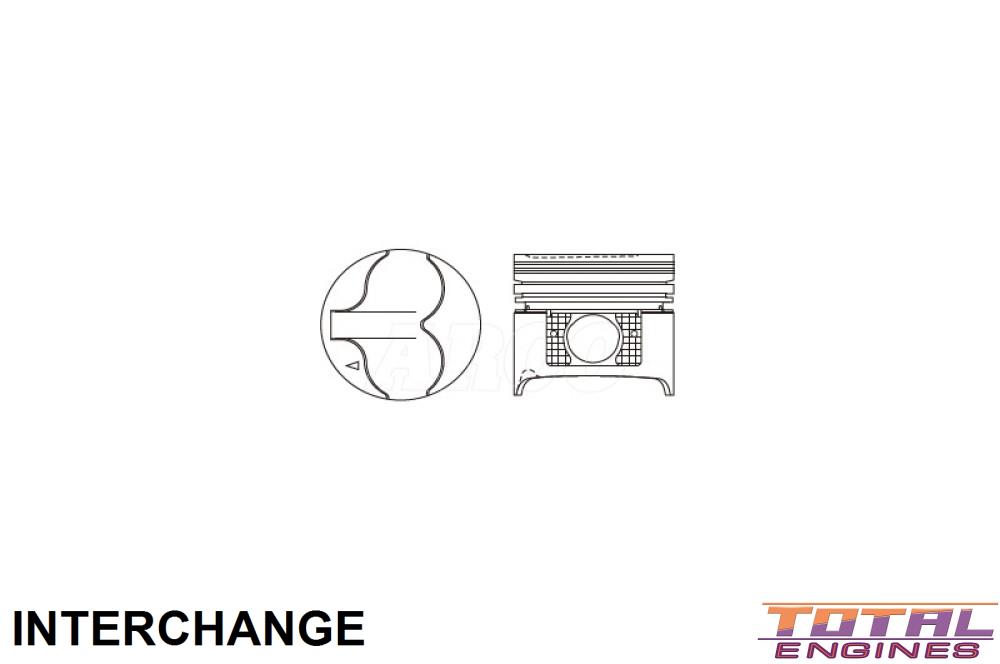

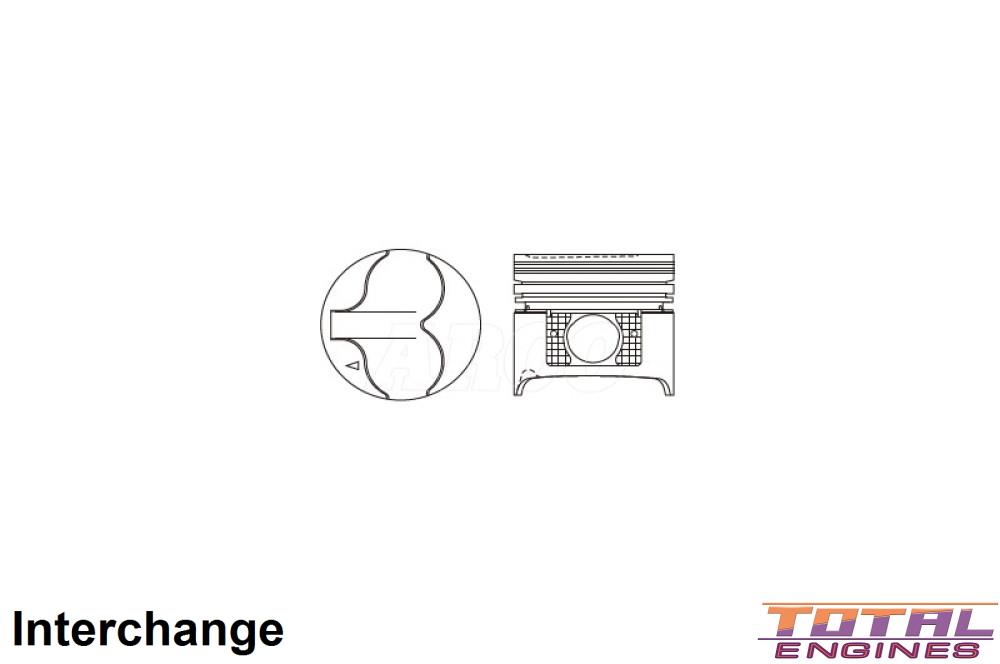

Head Type:	Flat top with two valve reliefs
Size:	0.50mm/.020"
Std Bore Size:	85.00mm
Piston Set:	6 x Pistons, Pins & Rings

Description

Suits Turbo intercooled only

Alfin insert, Oil gallery cooled, Anodized crown
