Interchange Piston & ring set - PKT1HDFTE-1.00

Part

Interchange Piston & ring set - PKT1HDFTE-1.00

Out Of Stock

Specifications
Piston Set:	6 x Pistons, Pins & Rings
Std Bore Size:	94.00mm
Size:	1.00mm/.040"
Head Type:	Dish top
Piston Type:	Cast
Length:	80.40mm

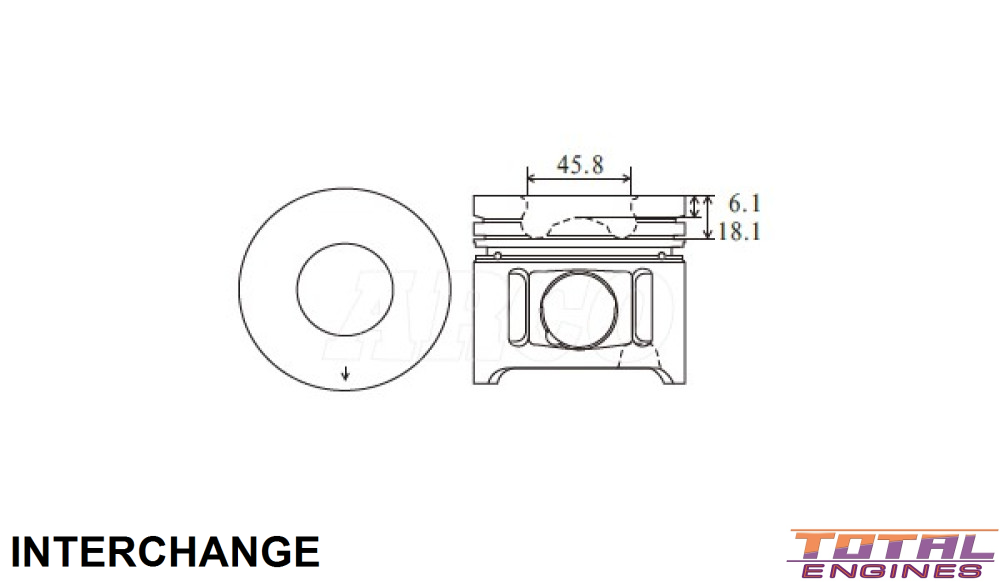

Comp Height:	49.40mm - 6.10mm - 18.10mm
Combustion Bowl OD:	45.80mm
Pin Size:	33.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm

Description

Suits 1HD-FTE
