Nason >> Nason Piston & Pin Set - 4P1028-STD

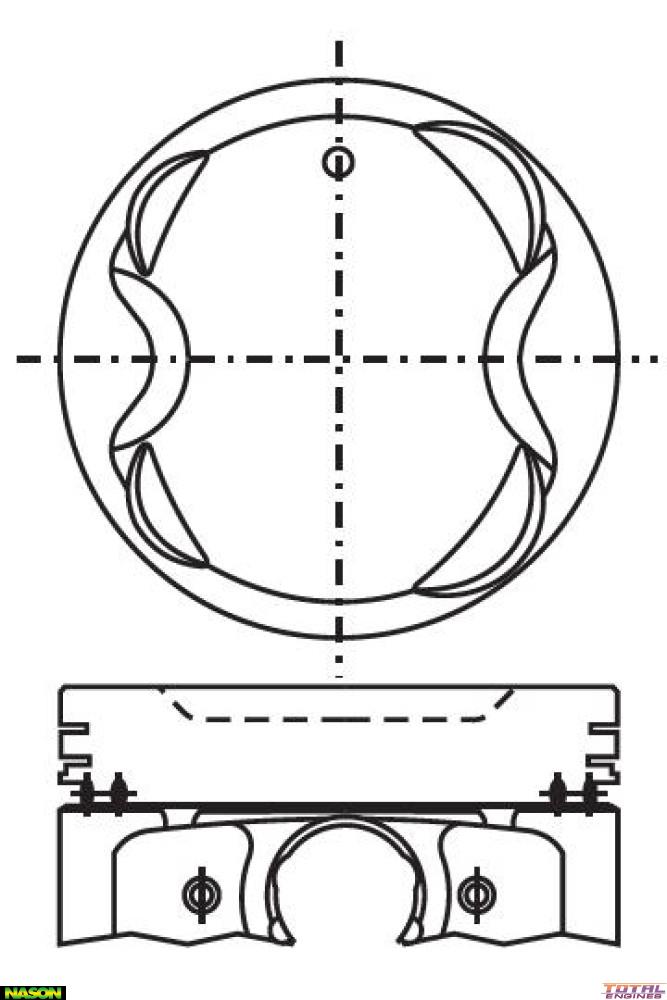

Nason Piston & Pin Set - 4P1028-STD

Part
Nason logo

Nason Piston & Pin Set - 4P1028-STD

Out Of Stock

Specifications
Ring Set: 2M4207
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 22.00mm x 70.00mm
Comp Height: 32.50mm - 4.80mm
Length: 63.00mm
Piston Type: Cast
Head Type: Dish Top
Std Bore Size: 87.00mm
Piston Set: 4 x Piston & Pins
