Nason >> Nason Piston & Pin Set - 4P1069-1.00

Nason Piston & Pin Set - 4P1069-1.00

Part
Nason logo

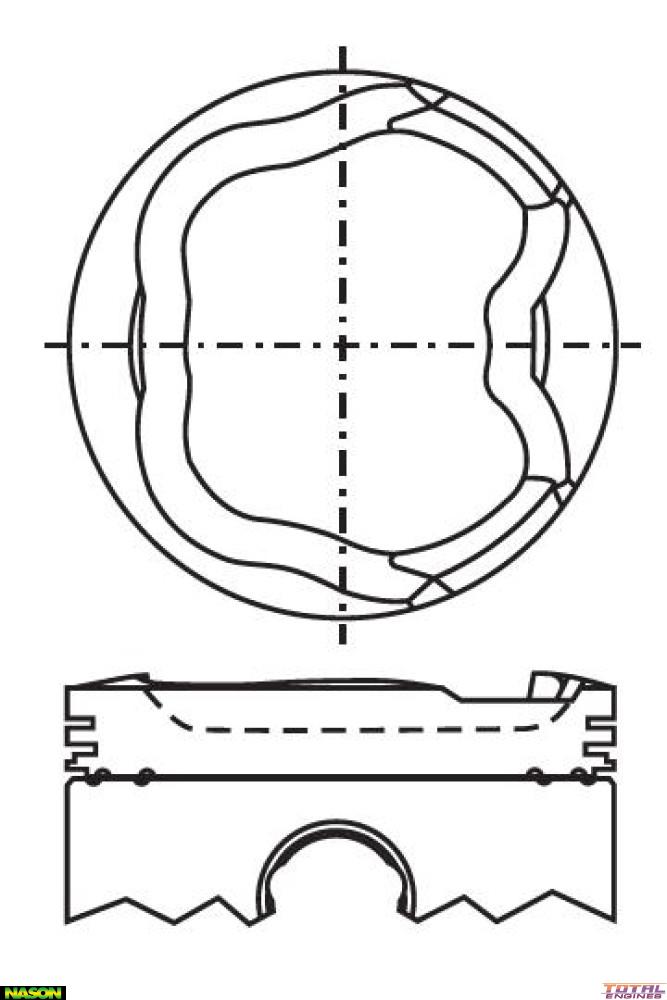

Nason Piston & Pin Set - 4P1069-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C5261 Or SDT10193
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 22.00mm x 62.00mm
Comp Height: 39.30mm - 8.60mm
Length: 59.30mm
Piston Type: Cast
Head Type: Dish Top
Size: 1.00mm / .040"
Std Bore Size: 95.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
