Nason >> Nason Piston & Pin Set - 4P1121-STD

Nason Piston & Pin Set - 4P1121-STD

Part
Nason logo

Nason Piston & Pin Set - 4P1121-STD

Out Of Stock

Specifications
Ring Set: 2C5099
Oil Ring Width: 2.50mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 20.00mm x 57.00mm
Comp Height: 32.00mm - 4.10mm
Length: 54.90mm
Piston Type: Cast

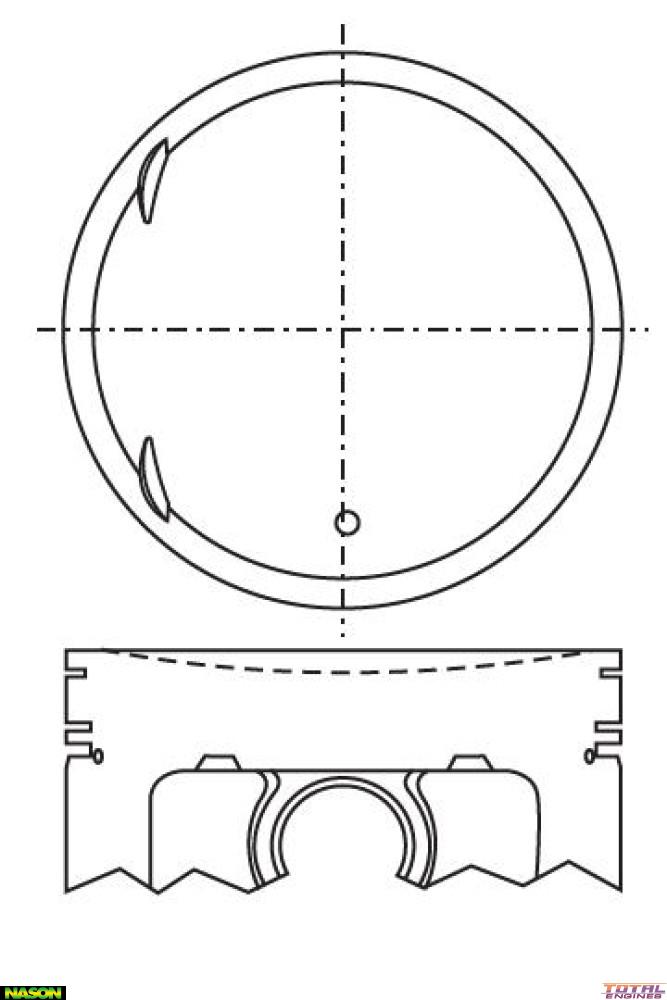

Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 89.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
