Nason >> Nason Piston & Pin Set - 4P1217-0.50

Nason Piston & Pin Set - 4P1217-0.50

Part
Nason logo

Nason Piston & Pin Set - 4P1217-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Size: 20mm Gudgeon Pin
Ring Set: 2C6180 or 6180
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 20.00mm x 61.00mm
Comp Height: 30.60mm - 1.00mm
Length: 64.60mm
Piston Type: Cast

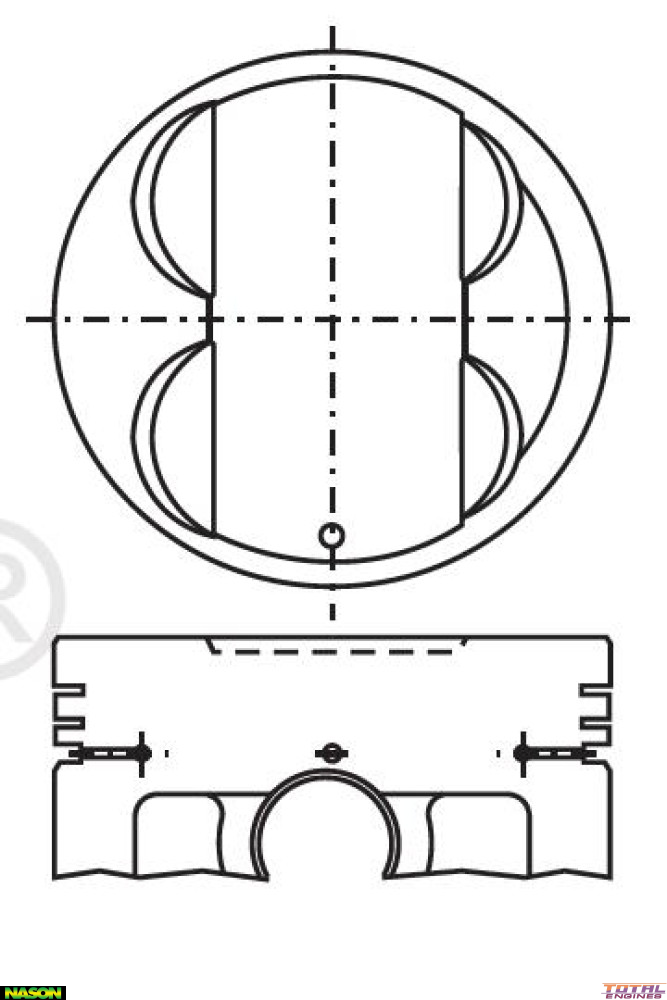

Head Type: Dish Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 81.00mm
Piston Set: 4 x Piston & Pins

Description

Dish Top with 20mm Pin
