Nason Piston & Pin Set - 4P1234-1.00

Part

Nason Piston & Pin Set - 4P1234-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	2C4367
Oil Ring Width:	4.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	19.00mm x 64.00mm
Comp Height:	34.00mm + 3.80mm
Length:	71.80mm
Piston Type:	Cast

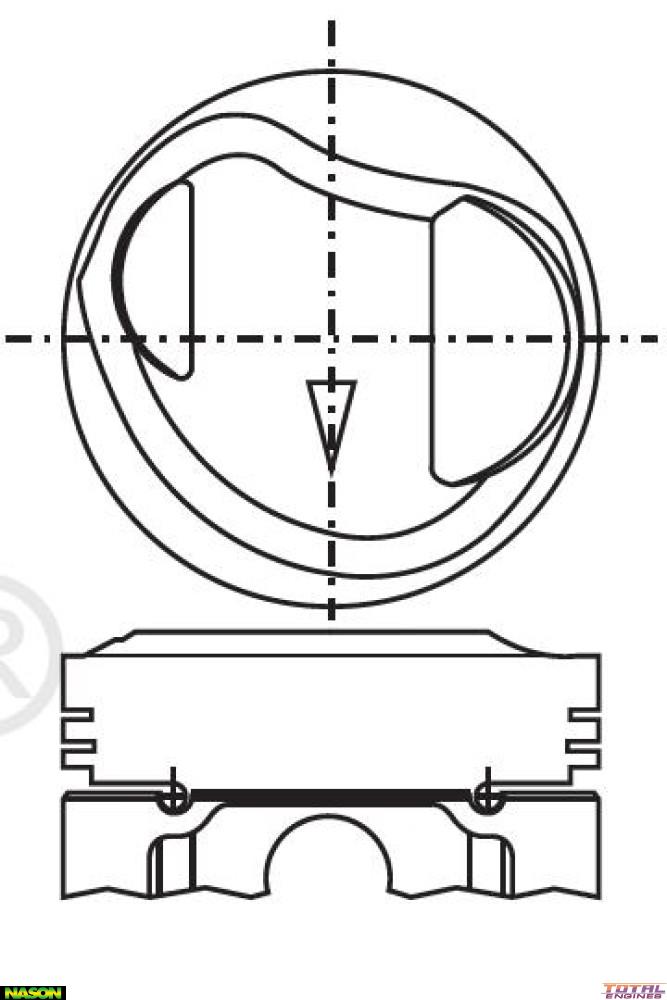

Head Type:	Dome Top with 2 Valve Reliefs
Size:	1.00mm / .040"
Std Bore Size:	80.60mm
Piston Set:	4 x Piston & Pins
