Nason >> Nason Piston & Pin Set - 4P1260-0.50

Nason Piston & Pin Set - 4P1260-0.50

Part
Nason logo

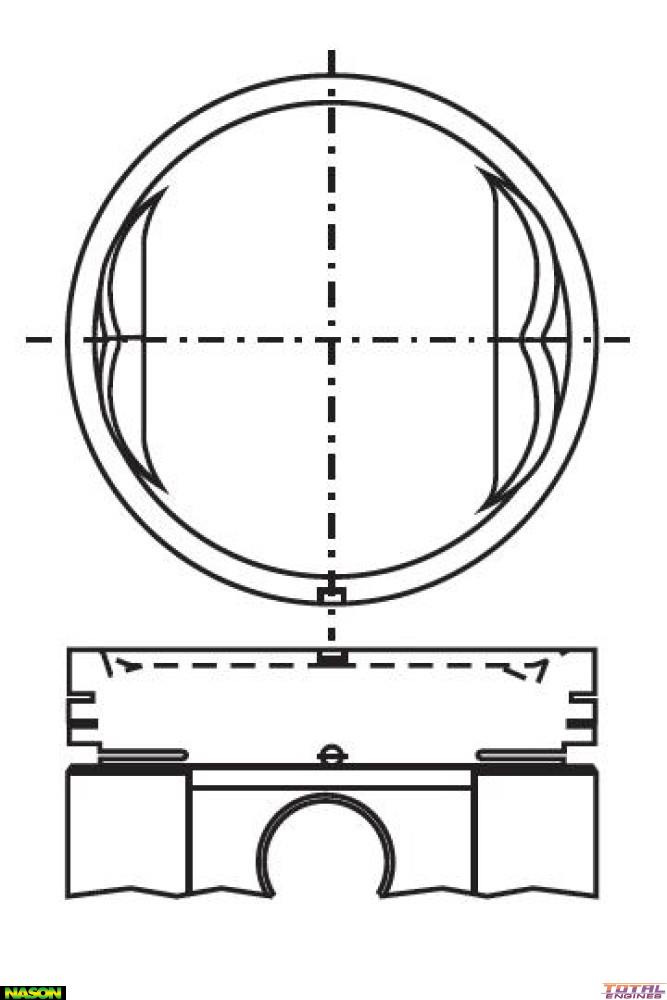

Nason Piston & Pin Set - 4P1260-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Size: 35.50mm Compression Height
Ring Set: 2M6149 or 6149
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 21.00mm x 72.00mm
Comp Height: 35.50mm - 2.30mm
Length: 71.80mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 87.00mm
Piston Set: 4 x Piston & Pins

Description

35.50mm Comp Height
