Nason >> Nason Piston & Pin Set - 4P1285-STD

Nason Piston & Pin Set - 4P1285-STD

Part
Nason logo

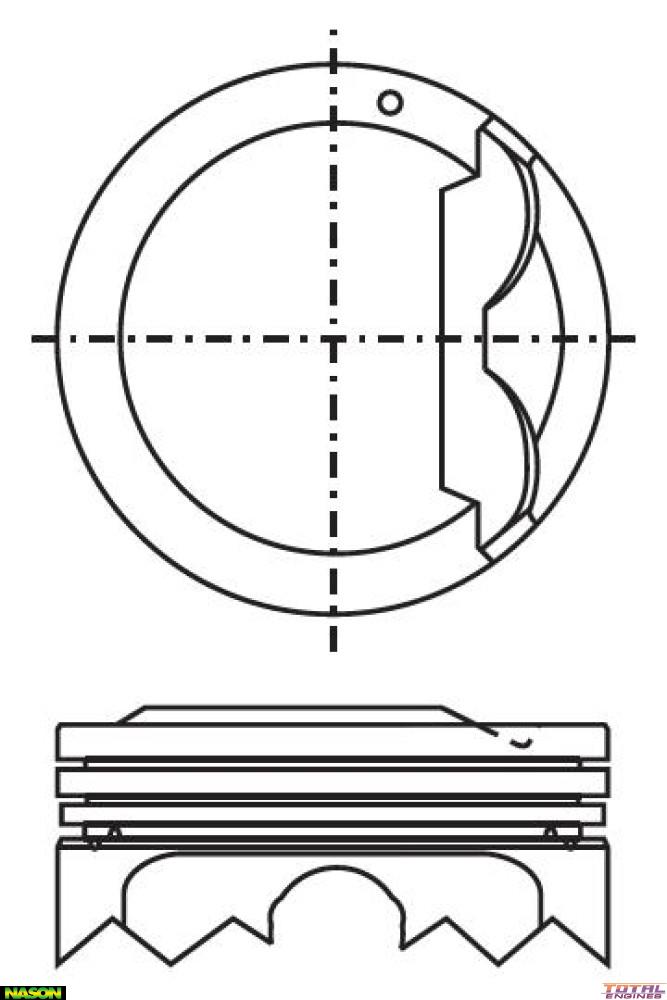

Nason Piston & Pin Set - 4P1285-STD

Out Of Stock

Specifications
Ring Set: 2C4576
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Press Fit
Pin Size: 18.00mm x 47.50mm
Comp Height: 28.70mm + 2.30mm
Length: 48.00mm
Piston Type: Cast
Head Type: Dome Top with 2 Valve Reliefs
Std Bore Size: 75.50mm
Piston Set: 4 x Piston & Pins
