Nason >> Nason Piston & Pin Set - 4P1354-1.00

Nason Piston & Pin Set - 4P1354-1.00

Part
Nason logo

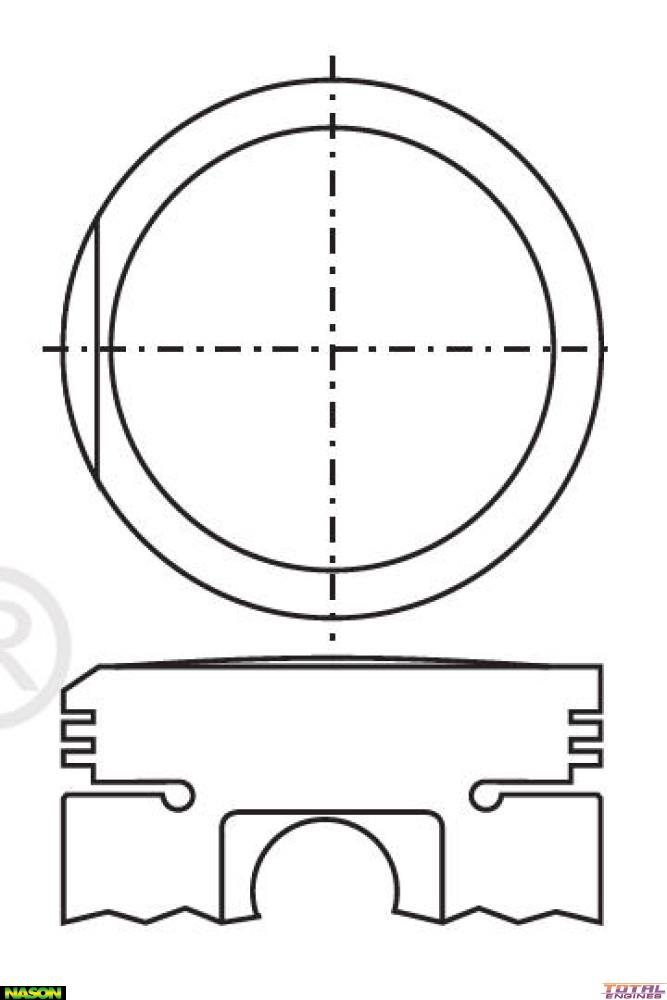

Nason Piston & Pin Set - 4P1354-1.00

Out Of Stock

Specifications
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4347 or 4347
Size: 1.00mm Oversize
Pin Size: 20.00mm x 56.00mm
Comp Height: 31.00mm + 1.30mm
Length: 64.30mm
Piston Type: Cast
Head Type: Dome Top
Size: 1.00mm / .040"
Std Bore Size: 73.00mm
Piston Set: 4 x Piston & Pins

Description

Press Fit Piston Pin
