Nason >> Nason Piston & Pin Set - 4P1361-1.50

Nason Piston & Pin Set - 4P1361-1.50

Part
Nason logo

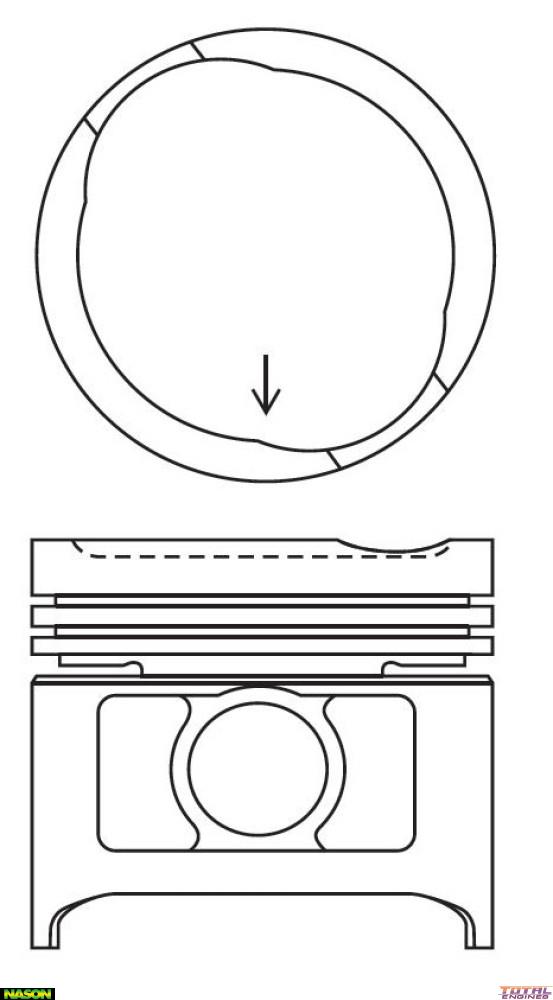

Nason Piston & Pin Set - 4P1361-1.50

Out Of Stock

Specifications
Size: 1.50mm Oversize
Ring Set: 2C9519 or 9519
Oil Ring Width: 4.00mm
2nd Ring Width: 1.75mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 23.00mm x 70.00mm
Comp Height: 40.00mm - 3.10mm
Length: 72.10mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.50mm / .060"
Std Bore Size: 80.00mm
Piston Set: 4 x Piston & Pins
