Nason >> Nason Piston & Pin Set - 4P1384-STD

Nason Piston & Pin Set - 4P1384-STD

Part
Nason logo

Nason Piston & Pin Set - 4P1384-STD

Out Of Stock

Specifications
Ring Set: 2M5168
Oil Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 22.50mm x 65.00mm
Comp Height: 32.50mm - 5.80mm
Length: 55.00mm
Piston Type: Cast

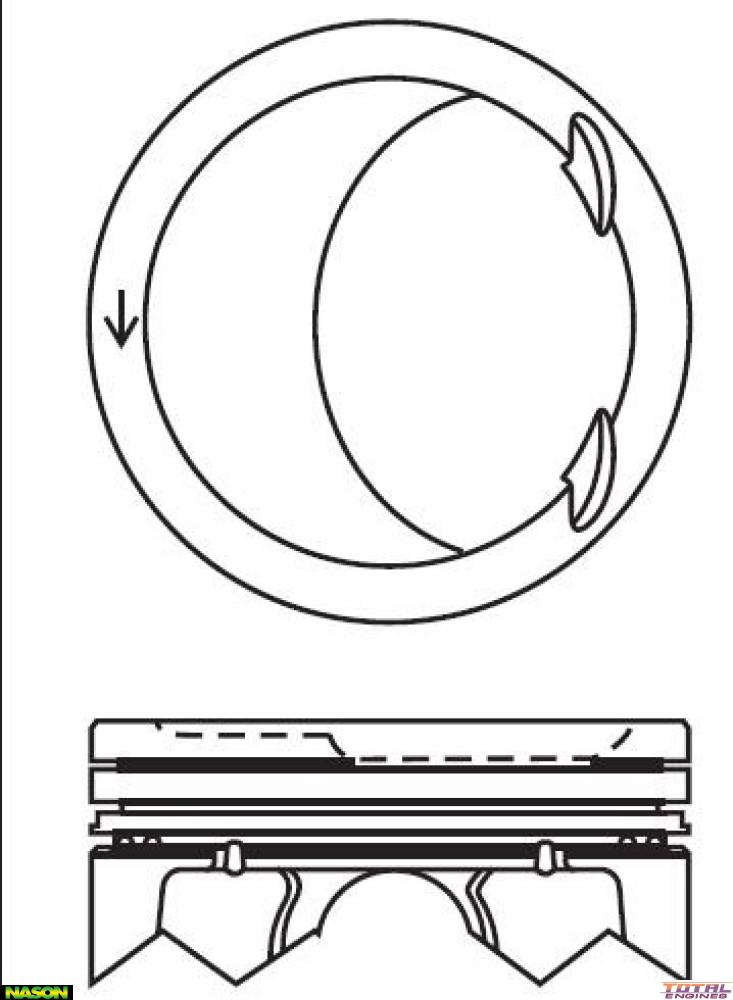

Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 87.50mm
Piston Set: 4 x Piston & Pins

Description

Egg Shape Bowl

Anodized Head, Top & 2nd Ring Lands
