Nason Piston & Pin Set - Standard Size for Nissan Tiida C11 (1.8L)

Elevate your vehicle's performance with the Nason Piston & Pin Set, engineered specifically for the Nissan Tiida C11 1.8L. Crafted with precision and designed to meet the highest industry standards, this piston set is an essential upgrade for any enthusiast or professional looking to enhance engine stability and efficiency.

Product Features:

• Premium Quality Construction: The Nason Piston & Pin Set features a durable cast piston design, ensuring reliability and longevity under even the most demanding conditions.

• Anodized Head for Enhanced Performance: Each piston comes with anodized head, top, and 2nd ring lands, reducing friction and improving thermal efficiency for maximum engine performance.

• Precision Fit: Designed to fit seamlessly into the Nissan Tiida C11’s engine block with a standard bore size of 84.00mm. The full floating pin design further enhances smooth operation and minimizes wear.

• Comprehensive Set: This set includes 4 pistons and pins, making it ideal for a complete engine rebuild or upgrade.

• Compatibility Details:
• Vehicle Model: Nissan Tiida C11
• Engine Displacement: 1.8L

Specifications:

• Piston Type: Cast

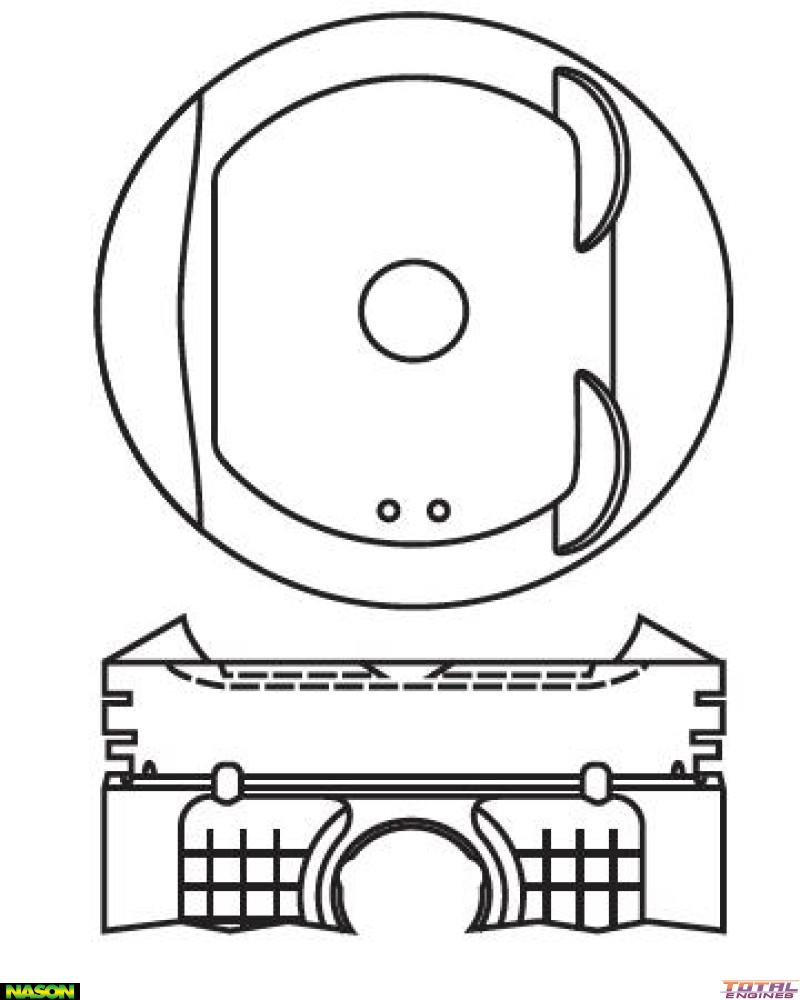

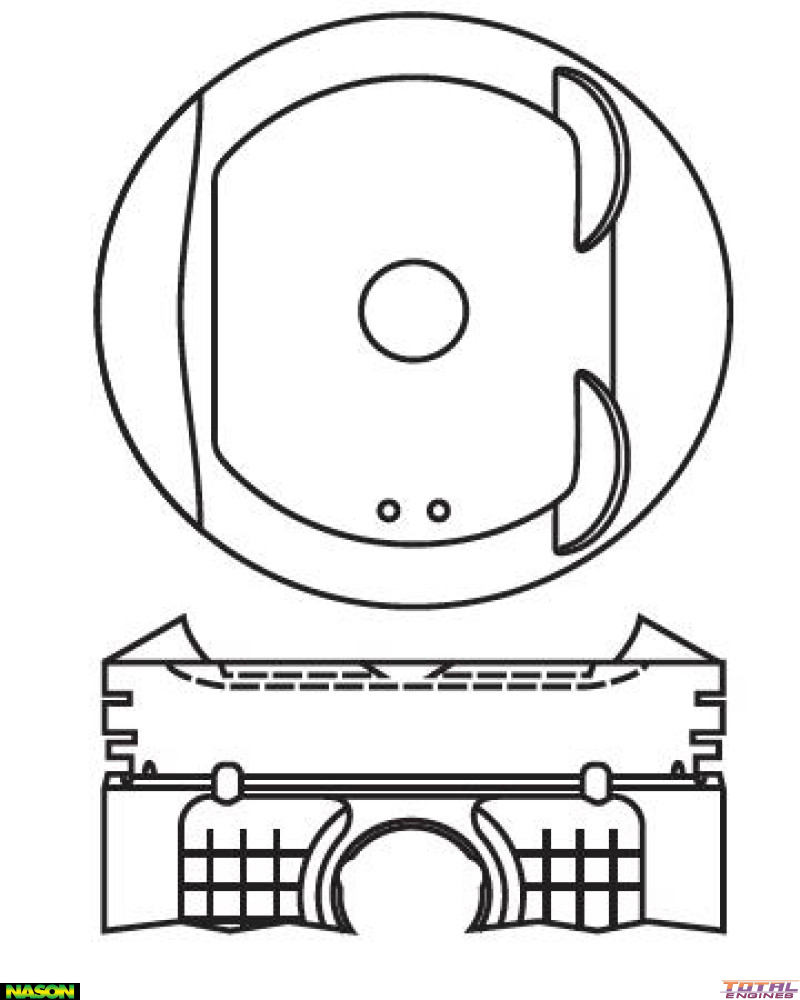

• Head Type: Dome Top with 2 Valve Reliefs
• Length: 49.60mm
• Compression Height: 31.10mm + 3.10mm
• Pin Size: 20.00mm x 53.00mm
• Pin Type: Full Floating
• Skirt Coating: Yes for added durability
• Piston to Bore: See Label on Box
• Ring Set Number: 2C5223
• Ring Widths:
• Top Ring: 1.20mm
• 2nd Ring: 1.20mm
• Oil Ring: 2.00mm

Upgrade your Nissan Tiida's engine with the Nason Piston & Pin Set today, and experience the difference in power output and efficiency. Whether you’re refurbishing an old engine or assembling a new one, trust Nason’s dedication to quality and performance. Get ready to hit the road with confidence!
