Nason >> Nason Piston & Pin Set - 6DP2063-0.50

Nason Piston & Pin Set - 6DP2063-0.50

Part
Nason logo

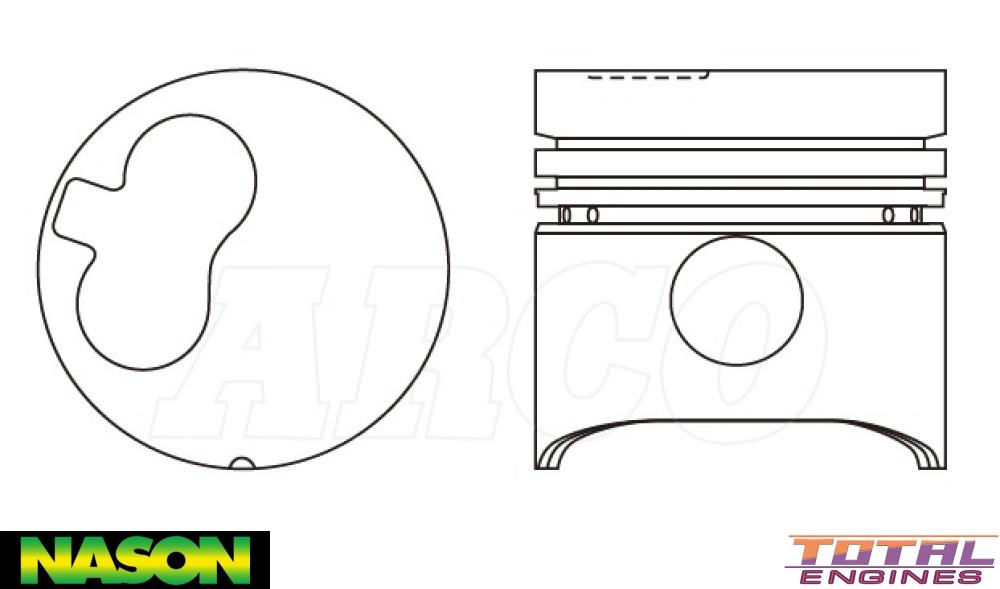

Nason Piston & Pin Set - 6DP2063-0.50

Out Of Stock

Specifications
Size: 90mm Length
Ring Set: 35856-0.50
Oil Ring Width: 4.00mm
2nd Ring Width: 2.50mm
Top Ring Width: 2.50mm Half Keystone
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 29.00mm x 74.00mm
Comp Height: 52.20mm, -1.60mm
Length: 90.10mm
Piston Type: Cast
Head Type: Flat Top With Cloverleaf
Size: 0.50mm / .020"
Std Bore Size: 91.00mm
Piston Set: 6 x Pistons & Pins

Description

Suits From 10/84 90mm Length

Combustion Bowl OD
