Nason >> Nason Piston & Pin Set - 6P1346-1.00

Nason Piston & Pin Set - 6P1346-1.00

Part
Nason logo

Nason Piston & Pin Set - 6P1346-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4754 or 4754
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 21.00mm x 64.00mm
Comp Height: 32.50mm - 1.60mm
Length: 63.80mm
Piston Type: Cast

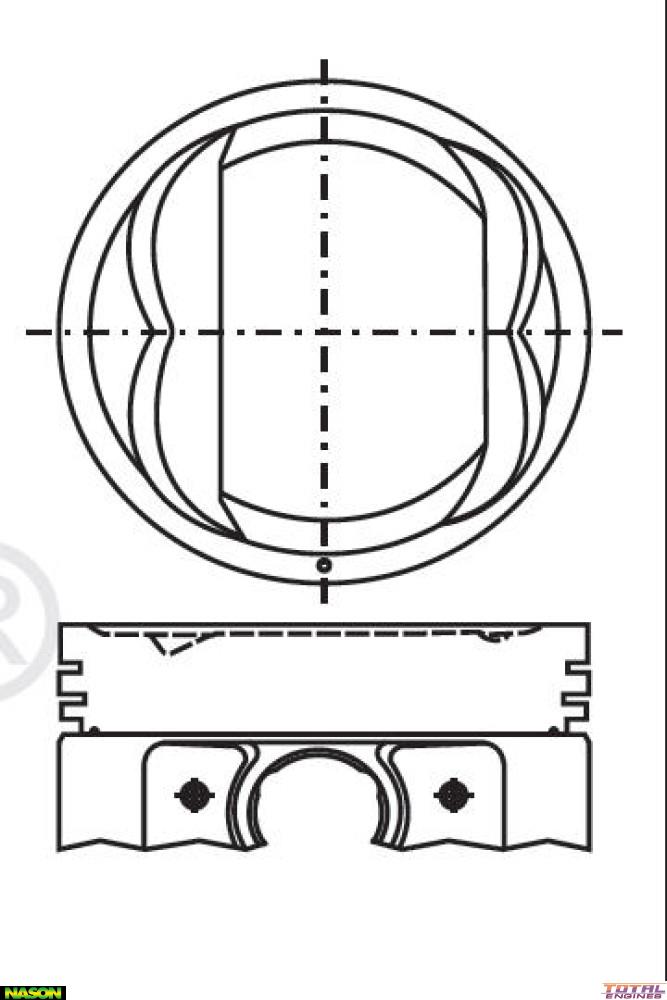

Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 86.00mm
Piston Set: 6 x Piston & Pins

Description

Anodized Head
