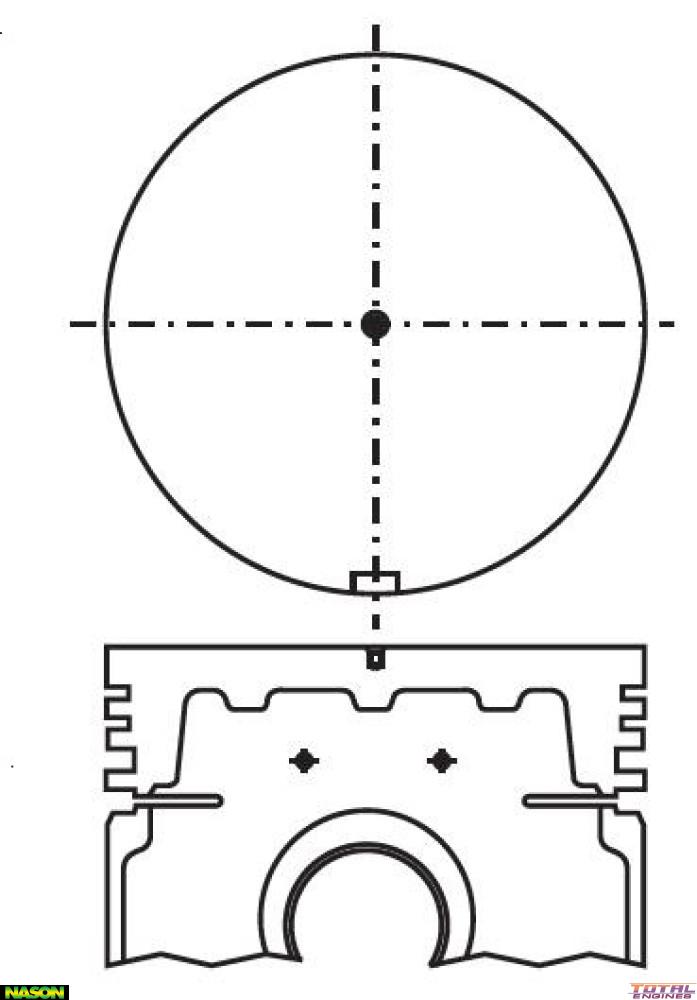

Nason >> Nason Piston & Pin Set - 6P1387-0.50

Nason Piston & Pin Set - 6P1387-0.50

Part
Nason logo

Nason Piston & Pin Set - 6P1387-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2c4229 or 4229
Oil Ring Width: 4.00mm
Oil Ring Width: 4.00mm
2nd Ring Width: 2.50mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 25.15mm X 80.00mm
Comp Height: 47.43mm
Length: 95.50mm
Piston Type: Cast
Head Type: Flat Top
Size: 0.50mm / 0.020"
Std Bore Size: 90.00mm
Piston Set: 6 x Piston & Pins
