Audi >> S4 >> B8 >> 3.0 Litre V6 CAKA DOHC 24v >> 3.0 TFSI Avant Quattro 8K 05/2009 - 06/2012 4 Door Wagon >> DBA Brake Rotor Street Series En-Shield Front

DBA Brake Rotor Street Series En-Shield Front Fits Audi S4 B8 3.0 TFSI Avant Quattro 8K Wagon [05/2009 to 06/2011] (3.0L CAKA V6 DOHC VVT Supercharged Direct Inj)

Part
Thumbnail
Thumbnail
Thumbnail
DBA logo

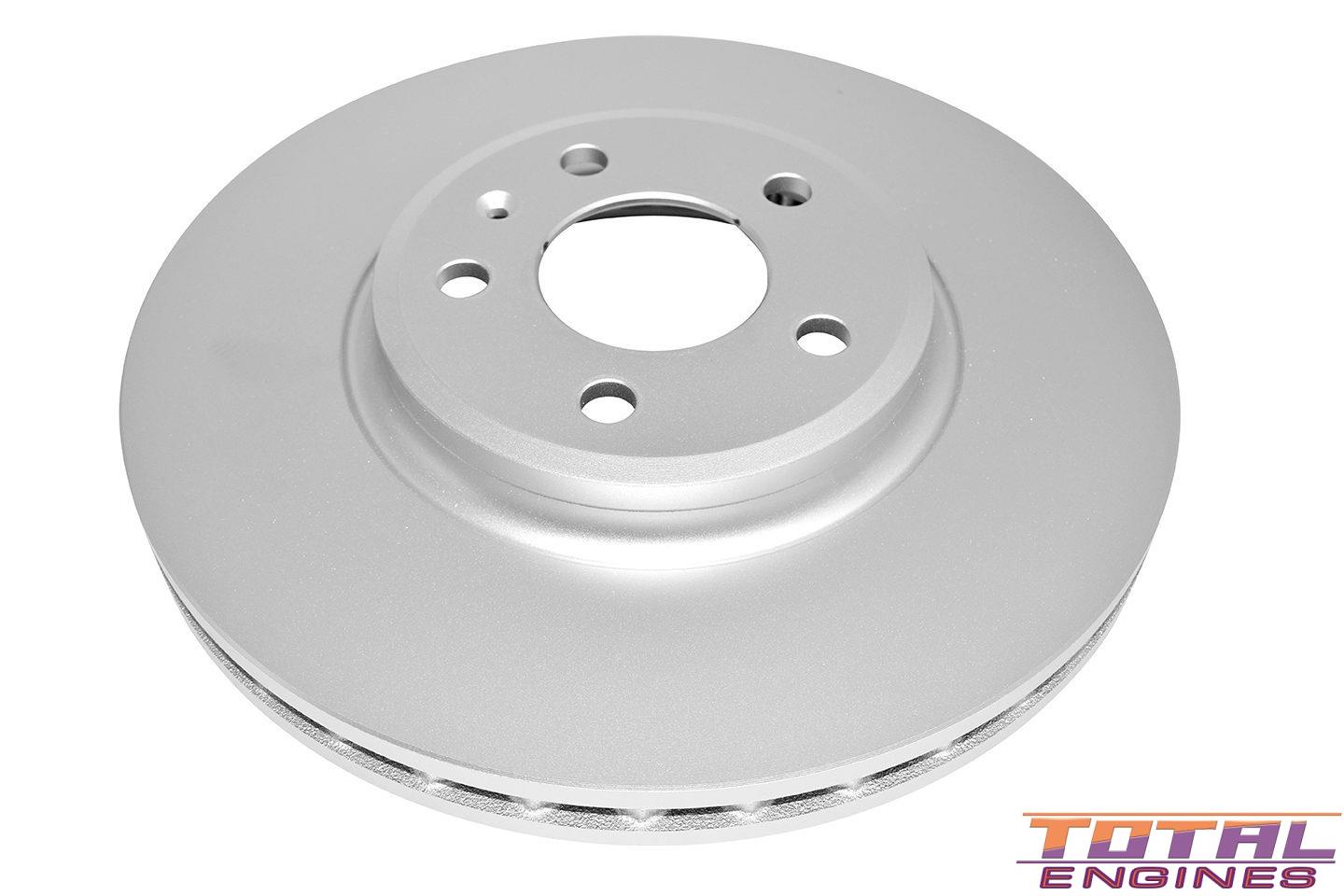

DBA Brake Rotor Street Series En-Shield Front

Fitment Information:

Street Standard En-Shield Coated --> 06/2011, 320mm ( 1LA )

$139.67 Each / Full Set (x2): $279.34

Specifications
Product SubVariant: En-Shield
Axle: Front
Vane Design: Pillar Post Vents
Outer diameter[mm]: 320
Height [mm]: 52.5
Brake Disc Thickness [mm]: 30
Minimum Thickness [mm]: 28
Centering Diameter [mm]: 68
Number of Holes: 5
Pitch Circle Ø: 112.00
Uom: Each
Surface Design: Plain
Size: 320mm ( 1LA & 1LB ) TRW / Girling
Size: 320mm ( 1LA & 1LB )
Size: 320mm ( 1LA ) Aust
Size: 320mm ( 1LA ) TRW / Girling
Size: 320mm ( 1LA )

Alert WARNING! This part will NOT FIT the following Vehicles:

Audi S4 B8 (3.0 Litre V6 CAKA DOHC 24v):
  • 3.0 TFSI Avant Quattro 8K AWD Wagon 4 Door [07/2011 to 06/2012] 245KW With Manual or Dual Clutch Transmission
  • 3.0 TFSI Quattro 8K AWD Sedan 4 Door [07/2011 to 06/2012] 245KW With Manual or Dual Clutch Transmission

Tick This part will fit the following Vehicles:

Audi S4 B8 (3.0 Litre V6 CAKA DOHC 24v):
  • 3.0 TFSI Avant Quattro 8K AWD Wagon 4 Door [05/2009 to 06/2011] 245KW With Manual or Dual Clutch Transmission
  • 3.0 TFSI Quattro 8K AWD Sedan 4 Door [05/2009 to 06/2011] 245KW With Manual or Dual Clutch Transmission

Description

Street Standard En-Shield Coated
