Cadillac >> Seville >> (No Series) >> 5.7 Litre V8 350 OHV 16v >> 01/1976 - 12/1977 4 Door Sedan >> ACL Race Series Main bearing set-performance

ACL Race Series Main bearing set-performance Fits Cadillac Seville Sedan [01/1976 to 12/1977] (5.7L 350 V8 OHV FI)

Part
ACL Race Series logo

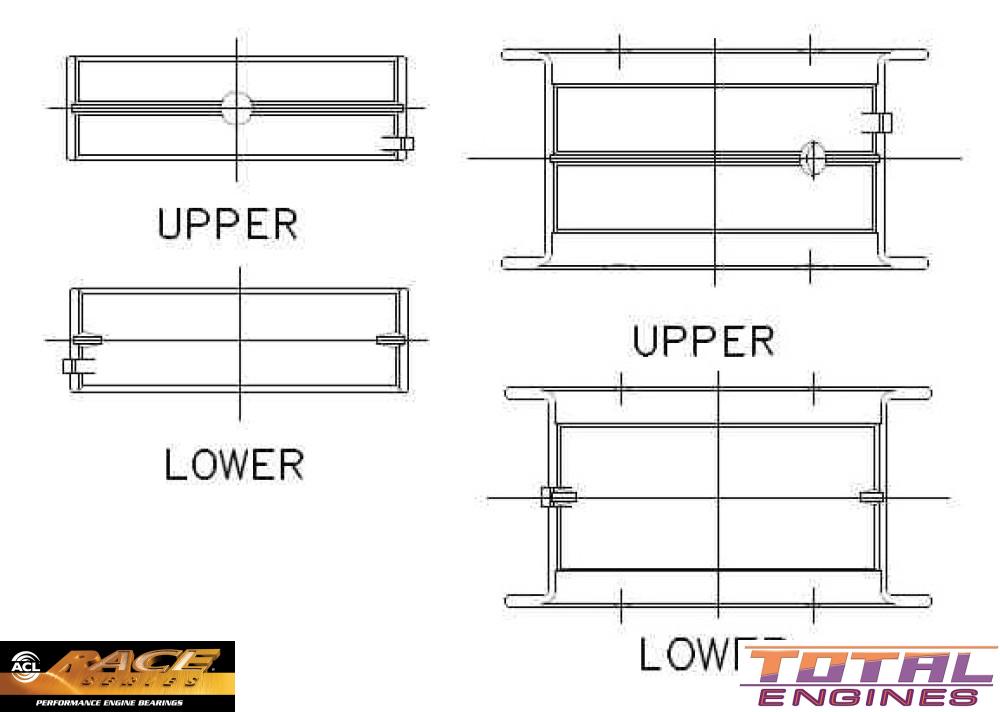

ACL Race Series Main bearing set-performance

Fitment Information:

ACL Race Series, 0.275mm Oversize

$110.70

Specifications
Material: Race Series (Tri-Metal)
Position: 1,2,3,4
Std Shaft Diam: 2.4484"/2.4493" (62.189mm/62.212mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 0.8070" (20.500mm)
Position: 5
Std Shaft Diam: 2.4479"/2.4488" (62.177mm/62.199mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 1.7180" (43.640mm)
Size: STD Shaft OD 62.1mm
Size: 0.275mm Oversize

Tick This part will fit the following Vehicles:

Cadillac Eldorado (5.7 Litre V8 350 OHV 16v):
  • RWD Coupe 2 Door [01/1979 to 12/1979] With Auto Transmission
  • FWD Coupe 2 Door [01/1980 to 12/1980] With Auto Transmission
Cadillac Seville (5.7 Litre V8 350 OHV 16v):
  • RWD Sedan 4 Door [01/1976 to 12/1977] With Auto Transmission
  • RWD Sedan 4 Door [01/1978 to 12/1979] With Auto Transmission

Description

The ACL Race Series Main bearing set-performance 011 Oversize (Product Code: 5M909H-011) is a top-quality product designed for high performance engines. Made from ACL's Race Series (Tri-Metal) material, these main bearings are ideal for engines that demand precision and durability.

This set includes bearings for positions 1, 2, 3, and 4, with standard shaft diameters ranging from 2.4484" to 2.4493" (62.189mm to 62.212mm). The oil clearance and maximum wall thickness are designed to provide optimal performance and reliability. The housing bore measures 2.6406" to 2.6416" (67.071mm to 67.097mm) with a maximum length of 0.8070" (20.500mm).

With standard shaft diameters ranging from 2.4479" to 2.4488" (62.177mm to 62.199mm), these bearings offer exceptional oil clearance and maximum wall thickness, ensuring consistent performance under high stress conditions. The housing bore measures 2.6406" to 2.6416" (67.071mm to 67.097mm) with a maximum length of 1.7180" (43.640mm).

These ACL Race Series Main bearings are available in STD Shaft OD 62.1mm size and also in a 0.275mm Oversize option, providing flexibility for various engine applications. With a rich history in motorsport and a reputation for quality and precision, ACL Race Series bearings are the top choice for engine builders worldwide.

With over 70 years of experience in manufacturing engine bearings, ACL has established itself as a leading supplier in the automotive industry. Their aftermarket range of engine bearings is known for its robust metallurgy, quality, and performance. The company's commitment to innovation and excellence is reflected in their ISO9001: 2015, ISO14001: 2015, and ISO451001: 2018 certifications for quality management, environmental management, and occupational health and safety.

Whether you are building a high-performance engine for racing or a street application, the ACL Race Series Main bearing set-performance 011 Oversize is a reliable choice that will provide superior performance and durability. Trust ACL for all your engine bearing needs.
