Chrysler >> Galant >> GC >> 1.6 Litre 4 Cyl 4G32 SOHC 8v >> GL, XL GC4#45 07/1974 - 03/1976 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Chrysler Galant GC GL, XL GC4#45 Wagon [07/1974 to 03/1976] (1.6L 4G32 4 Cyl SOHC CARB)

Part
Nason logo

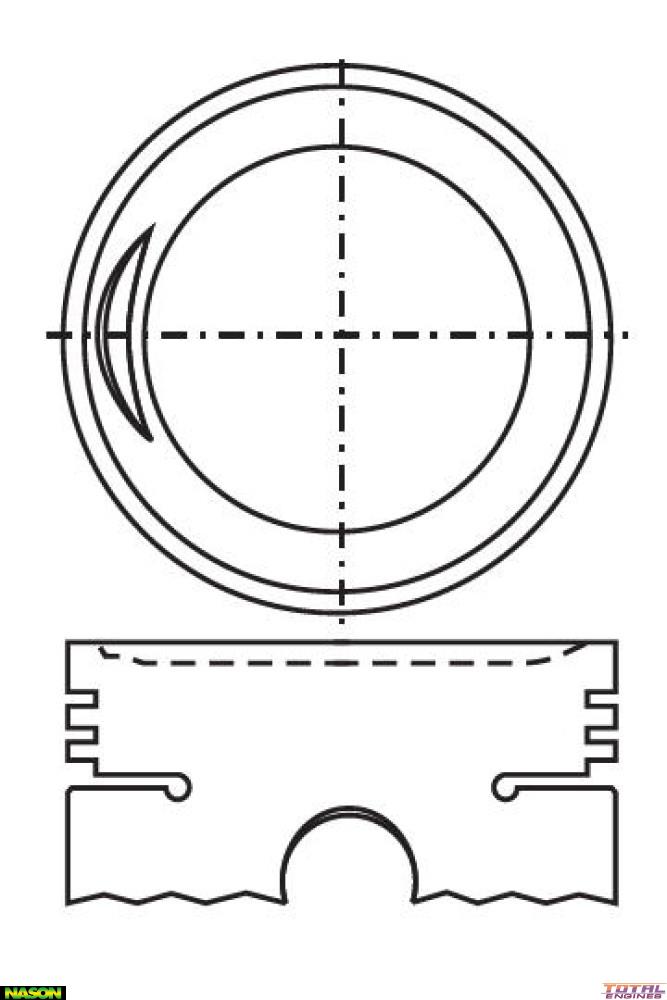

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 76.90mm
Size: 1.00mm / .040"
Head Type: Dish Top with 1 Valve Relief
Piston Type: Cast
Length: 70.40mm
Comp Height: 33.50mm - 3.00mm
Pin Size: 19.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C675 or 675
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Chrysler Galant GC (1.6 Litre 4 Cyl 4G32 SOHC 8v):
  • GL GC3#23 RWD Coupe 2 Door [07/1974 to 03/1976] 75KW With Manual Transmission
  • GL GC4#23 RWD Coupe 2 Door [07/1974 to 03/1976] 75KW With Manual Transmission
  • GL, XL GC3#41 RWD Sedan 4 Door [07/1974 to 03/1976] 75KW With Auto or Manual Transmission
  • GL, XL GC3#45 RWD Wagon 4 Door [07/1974 to 03/1976] 75KW With Manual Transmission
  • GL, XL GC4#41 RWD Sedan 4 Door [07/1974 to 03/1976] 75KW With Auto or Manual Transmission
  • GL, XL GC4#45 RWD Wagon 4 Door [07/1974 to 03/1976] 75KW With Auto Transmission

Description

Nason, 1.00mm Oversize
