Chrysler >> Galant >> GD >> 1.6 Litre 4 Cyl 4G32 SOHC 8v >> GL, XL GD4#45 04/1976 - 09/1977 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Chrysler Galant GD GL, XL GD4#45 Wagon [04/1976 to 09/1977] (1.6L 4G32 4 Cyl SOHC CARB)

Part
Nason logo

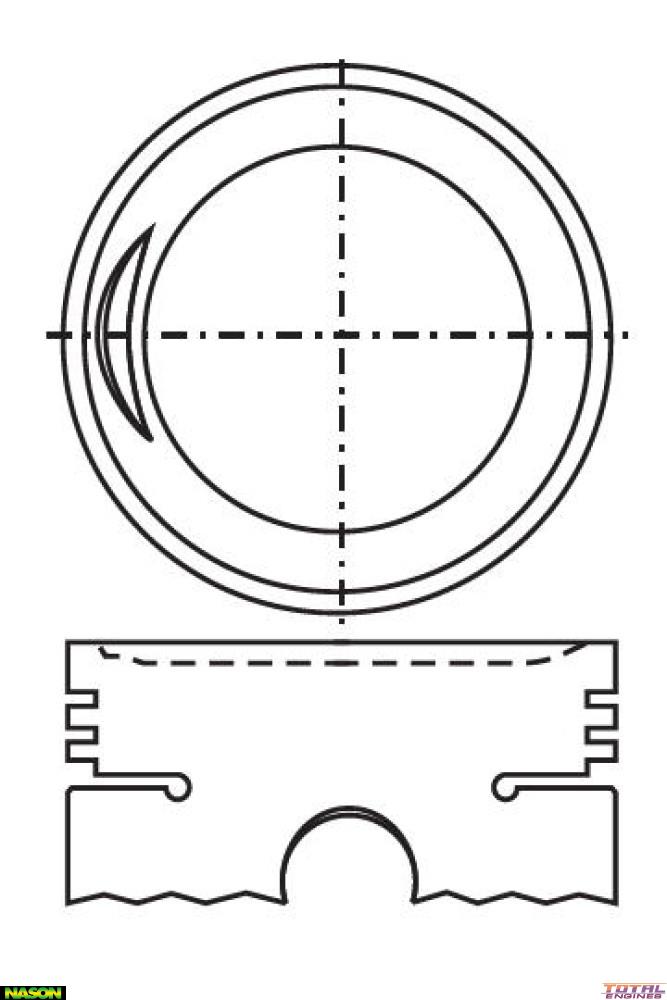

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C675 or 675
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 19.00mm x 64.00mm
Comp Height: 33.50mm - 3.00mm
Length: 70.40mm
Piston Type: Cast
Head Type: Dish Top with 1 Valve Relief
Size: 0.50mm / .020"
Std Bore Size: 76.90mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Chrysler Galant GD (1.6 Litre 4 Cyl 4G32 SOHC 8v):
  • GL GD3#23 RWD Coupe 2 Door [04/1976 to 09/1977] 75KW With Manual Transmission
  • GL, XL GD3#41 RWD Sedan 4 Door [04/1976 to 09/1977] 75KW With Manual Transmission
  • GL, XL GD3#45 RWD Wagon 4 Door [04/1976 to 09/1977] 75KW With Manual Transmission
  • GL, XL GD4#41 RWD Sedan 4 Door [04/1976 to 09/1977] 75KW With Auto or Manual Transmission
  • GL, XL GD4#45 RWD Wagon 4 Door [04/1976 to 09/1977] 75KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
