Ford >> Courier >> PC >> 2.0 Litre 4 Cyl FE SOHC 8v >> SGHE 06/1985 - 08/1988 2 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Ford Courier PC SGHE Ute [06/1985 to 08/1988] (2.0L FE 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Nason, STD Size Flat Top With Three Valve Reliefs

Out Of Stock

Specifications
Ring Set: 2M5664 or 5664
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 67.00mm
Comp Height: 34.20mm
Length: 71.20mm
Piston Type: Cast

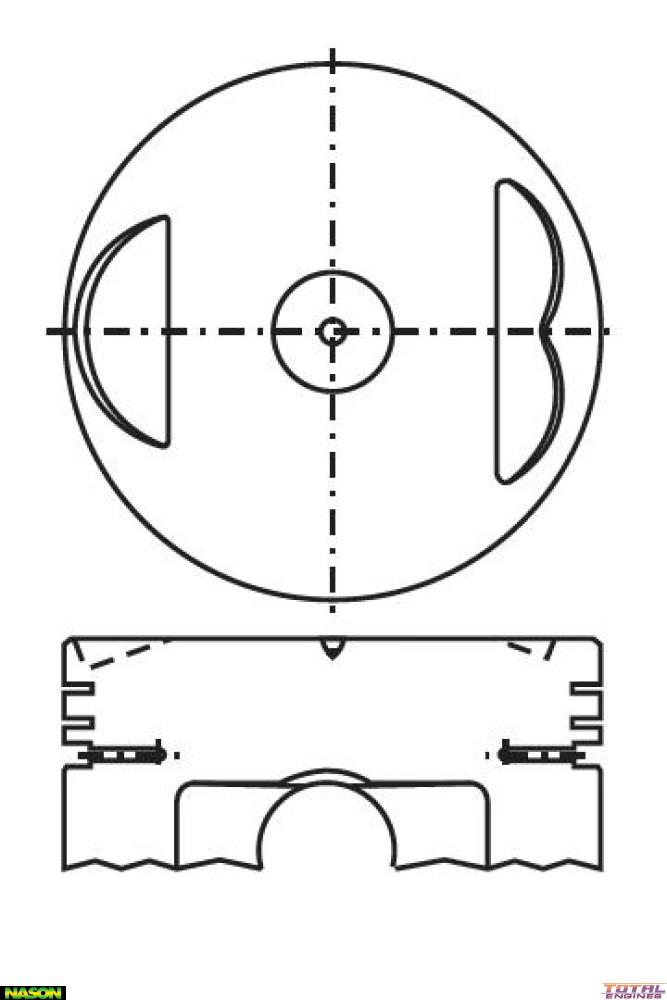

Head Type: Flat Top with 3 Valve Reliefs
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Ford Courier (No Series) (2.0 Litre 4 Cyl FE SOHC 8v):
  • SACE RWD Utility 2 Door [01/1986 to 12/1992] With Manual Transmission
  • SACP RWD Utility 2 Door [01/1988 to 12/1995] 77KW With Manual Transmission
  • SAHE RWD Utility 2 Door [01/1988 to 12/1989] With Manual Transmission
  • SALE RWD Utility 2 Door [01/1986 to 12/1992] With Manual Transmission

Tick This part will fit the following Vehicles:

Ford Courier PC (2.0 Litre 4 Cyl FE SOHC 8v):
  • SGHE RWD Ute 2 Door [06/1985 to 08/1988] 84KW With Manual Transmission With: With Flat Top, Three Valve Reliefs

Description

Nason, STD Size
