Ford >> Courier >> PH >> 2.5 Litre 4 Cyl WLAT SOHC 12v >> SEE4 02/1999 - 12/2006 4 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Courier PH SEE4 Cab Chassis [02/1999 to 12/2006] (2.5L WLAT 4 Cyl SOHC Turbo Diesel Inj)

Part
Nason logo

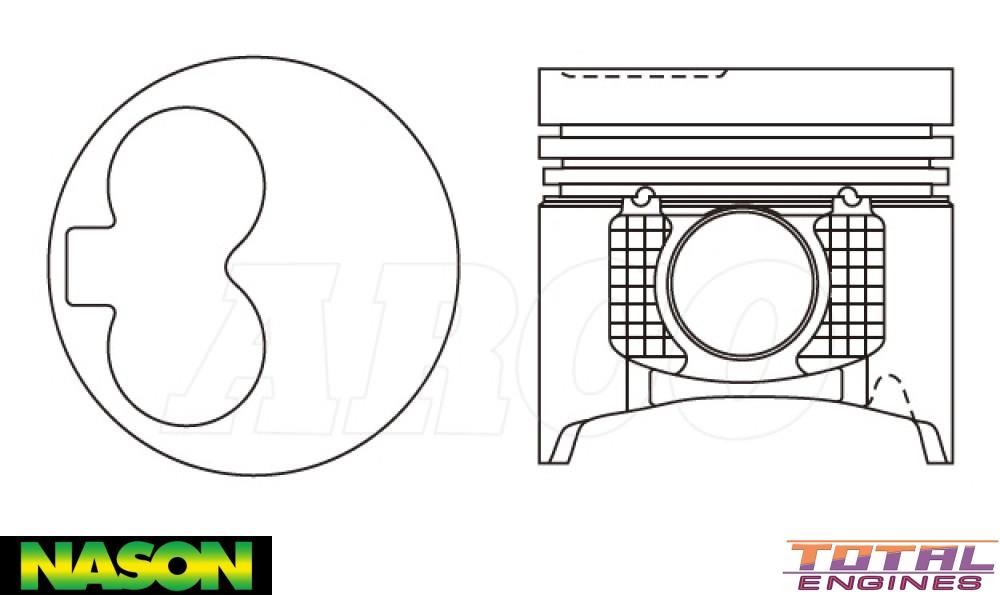

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$575.93

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 93.00mm
Size: 0.50mm / .020"
Head Type: Clover Leaf
Piston Type: Cast
Length: 87.30mm
Comp Height: 47.80mm, -2.00mm, -2.20mm
Pin Size: 32.00mm x 69.80mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33781-0.50

Tick This part will fit the following Vehicles:

Ford Courier PH (2.5 Litre 4 Cyl WLAT SOHC 12v):
  • SAE4 4WD Cab Chassis 2 Door [02/1999 to 12/2006] 86KW With Manual Transmission
  • SEE4 4WD Cab Chassis 4 Door [02/1999 to 12/2006] 86KW With Manual Transmission
  • SFD4 RWD Wellside 4 Door [02/1999 to 12/2006] 86KW With Manual Transmission
  • SFE4 4WD Wellside 4 Door [02/1999 to 12/2006] 86KW With Manual Transmission
  • Super CAB S1E4 4WD Cab Chassis 2 Door [11/2002 to 12/2006] 86KW With Manual Transmission
  • Super CAB S2E4 4WD Wellside 2 Door [11/2002 to 12/2006] 86KW With Manual Transmission

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling
