Ford >> Courier >> PH >> 2.6 Litre 4 Cyl G6 SOHC 12v >> SBD7 02/1999 - 02/2006 2 Door Ute/Single Cab Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Ford Courier PH SBD7 Ute/Single Cab Wellside [02/1999 to 02/2006] (2.6L G6 4 Cyl SOHC MPFI)

Part
Nason logo

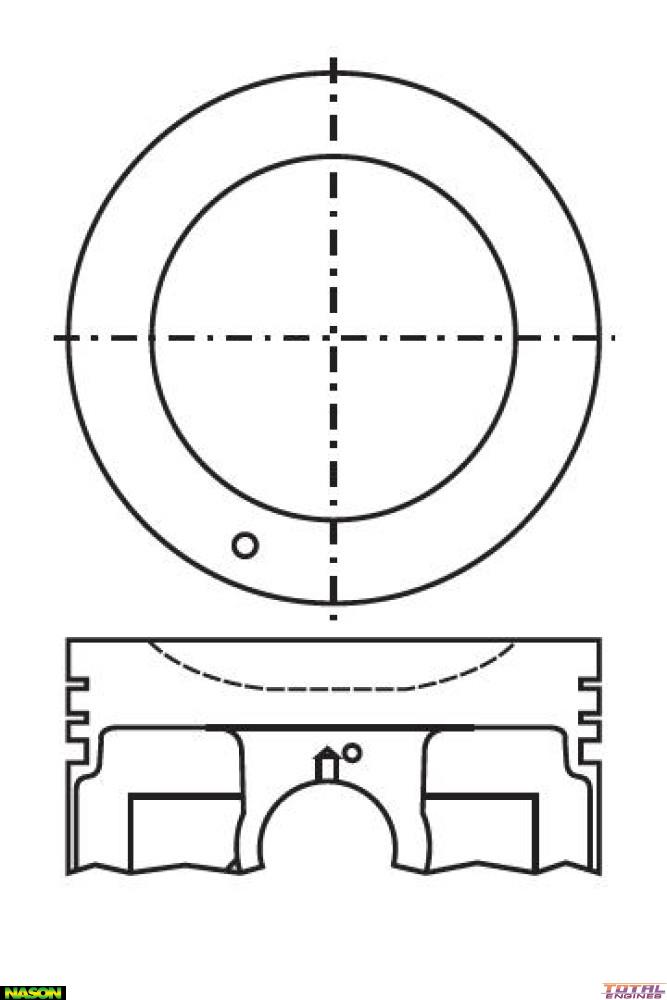

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 1.50mm Oversize
Ring Set: 2M4216 or 4216
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 23.00mm x 63.00mm
Comp Height: 36.50mm - 9.50mm
Length: 74.50mm
Piston Type: Cast
Head Type: Dish Top
Size: 1.50mm / .060"
Std Bore Size: 92.00mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Ford Courier PH (2.6 Litre 4 Cyl G6 SOHC 12v):
  • Super Cab S1D7 RWD Van/Cab Chassis 2 Door [01/2003 to 12/2006] 92KW With Manual Transmission

Tick This part will fit the following Vehicles:

Ford Courier PH (2.6 Litre 4 Cyl G6 SOHC 12v):
  • SAD7 RWD Van/Cab Chassis 2 Door [02/1999 to 02/2006] 92KW With Auto or Manual Transmission
  • SAE7 4WD Van/Cab Chassis 2 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SBD7 RWD Ute/Single Cab Wellside 2 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SED7 RWD Van/Cab Chassis 4 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SFD7 RWD Ute/Dual Cab Wellside 4 Door [02/1999 to 02/2006] 92KW With Auto or Manual Transmission
  • SFE7 4WD Ute/Dual Cab Wellside 4 Door [02/1999 to 02/2006] 92KW With Manual Transmission

Description

Nason, 1.50mm Oversize
