Ford >> Courier >> PH >> 2.6 Litre 4 Cyl G6 SOHC 12v >> SFE7 02/1999 - 02/2006 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Courier PH SFE7 Wellside [02/1999 to 02/2006] (2.6L G6 4 Cyl SOHC SPFI)

Part
Nason logo

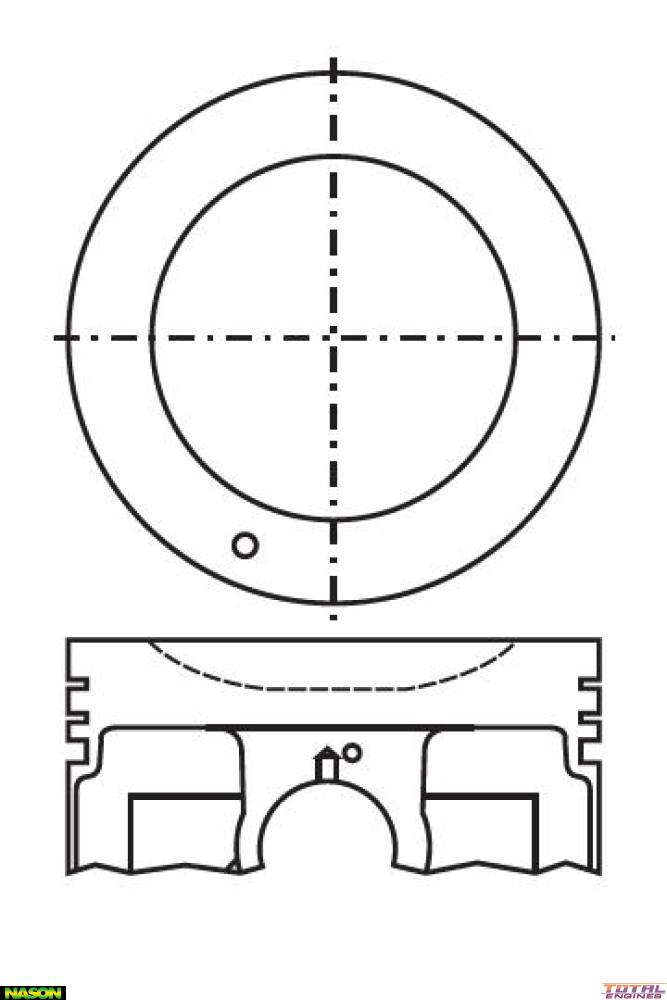

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: 1.50mm / .060"
Head Type: Dish Top
Piston Type: Cast
Length: 74.50mm
Comp Height: 36.50mm - 9.50mm
Pin Size: 23.00mm x 63.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4216 or 4216
Size: 1.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Ford Courier PH (2.6 Litre 4 Cyl G6 SOHC 12v):
  • SUPER CAB S1D7 RWD Cab Chassis 2 Door [01/2003 to 12/2006] 92KW With Manual Transmission

Tick This part will fit the following Vehicles:

Ford Courier PH (2.6 Litre 4 Cyl G6 SOHC 12v):
  • SAD7 RWD Cab Chassis 2 Door [02/1999 to 02/2006] 92KW With Auto or Manual Transmission
  • SAE7 4WD Cab Chassis 2 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SBD7 RWD Wellside 2 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SED7 RWD Cab Chassis 4 Door [02/1999 to 02/2006] 92KW With Manual Transmission
  • SFD7 RWD Wellside 4 Door [02/1999 to 02/2006] 92KW With Auto or Manual Transmission
  • SFE7 4WD Wellside 4 Door [02/1999 to 02/2006] 92KW With Manual Transmission

Description

Nason, 1.50mm Oversize
