Ford >> Festiva >> WB >> 1.3 Litre 4 Cyl B3 SOHC 8v >> GLI DB1 04/1994 - 12/1996 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Festiva WB GLI DB1 Hatchback [04/1994 to 12/1996] (1.3L B3 4 Cyl SOHC EFI)

Part
Nason logo

Nason Piston & pin set

$113.90

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 71.00mm
Size: 0.50mm / .020"

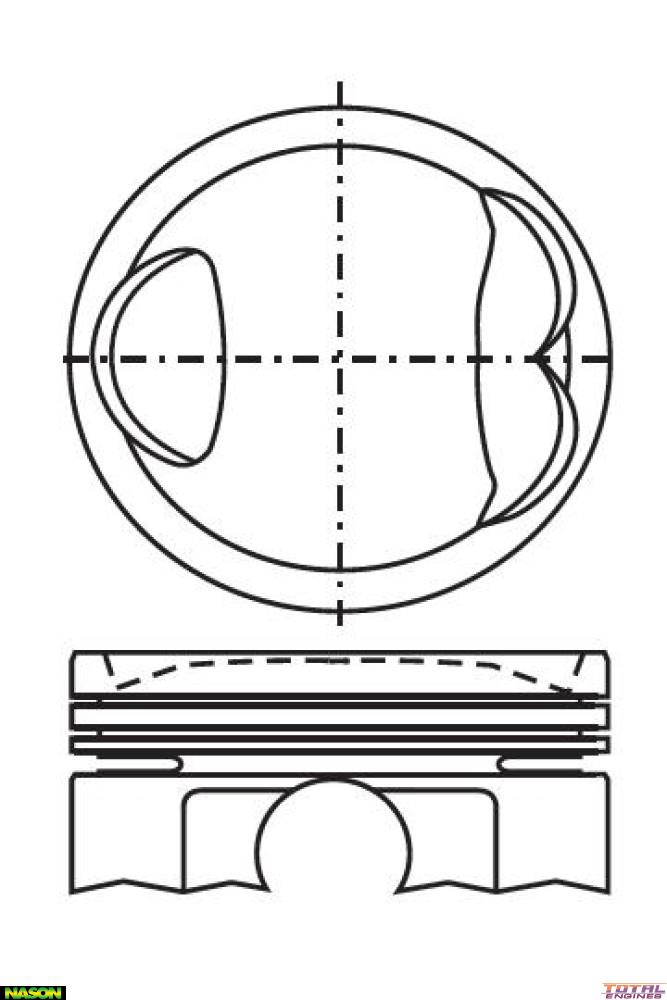

Head Type: Dish Top with 3 Valve Relief
Piston Type: Cast
Length: 60.00mm
Comp Height: 28.80mm - 4.70mm
Pin Size: 20.00mm x 52.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4451
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Ford Festiva WB (1.3 Litre 4 Cyl B3 SOHC 8v):
  • GLI DB1 FWD Hatchback 4 Door [04/1994 to 12/1996] 47KW With Auto or Manual Transmission
  • Trio DB1 FWD Hatchback 2 Door [04/1994 to 12/1996] 47KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
