Ford >> Laser >> KC >> 1.3 Litre 4 Cyl E3 SOHC 8v >> L U#2R 10/1985 - 03/1989 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Laser KC L U#2R Hatchback [10/1985 to 03/1989] (1.3L E3 4 Cyl SOHC CARB)

Part
Nason logo

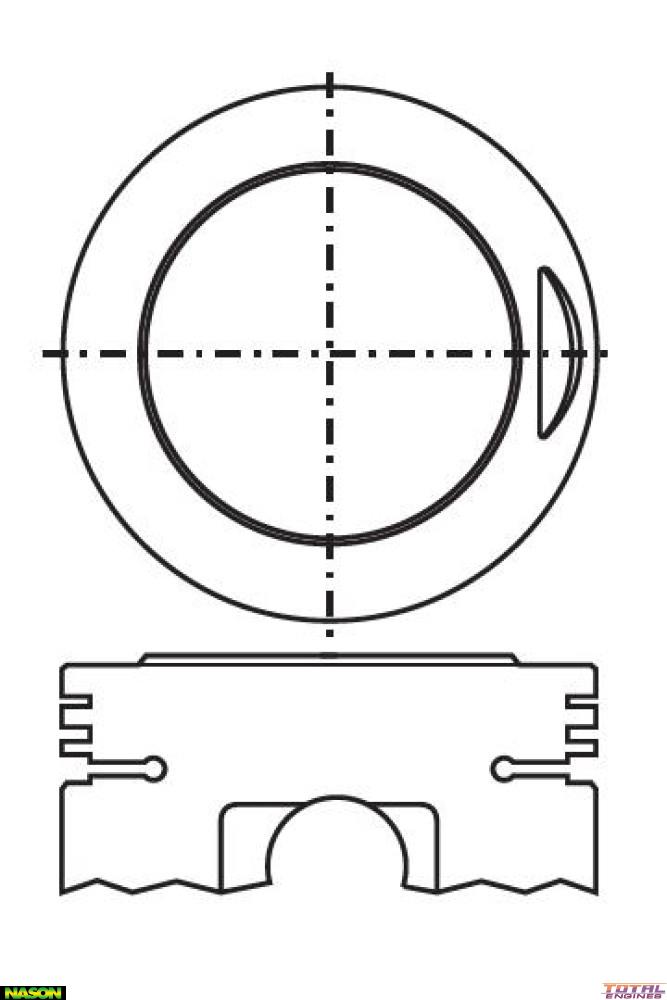

Nason Piston & pin set

$135.78

Specifications
Size: 0.50mm Oversize
Ring Set: 2C6175 or 6175
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 65.00mm
Comp Height: 29.00mm + 0.80mm
Length: 61.70mm
Piston Type: Cast
Head Type: Dome Top with 1 Valve Relief
Size: 0.50mm / .020"
Std Bore Size: 77.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Ford Laser KB (1.3 Litre 4 Cyl E3 SOHC 8v):
  • L U#2R FWD Hatchback 4 Door [03/1981 to 09/1985] 48KW With Manual Transmission
Ford Laser KC (1.3 Litre 4 Cyl E3 SOHC 8v):
  • L U#2R FWD Hatchback 4 Door [10/1985 to 03/1989] 49KW With Manual Transmission

Description

Nason, 0.50mm Oversize
