Ford >> Laser >> KJ >> 1.8 Litre 4 Cyl BP SOHC 16v >> Lynx SGPM 10/1994 - 11/1996 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Laser KJ Lynx SGPM Hatchback [10/1994 to 11/1996] (1.8L BP 4 Cyl SOHC EFI)

Part
Nason logo

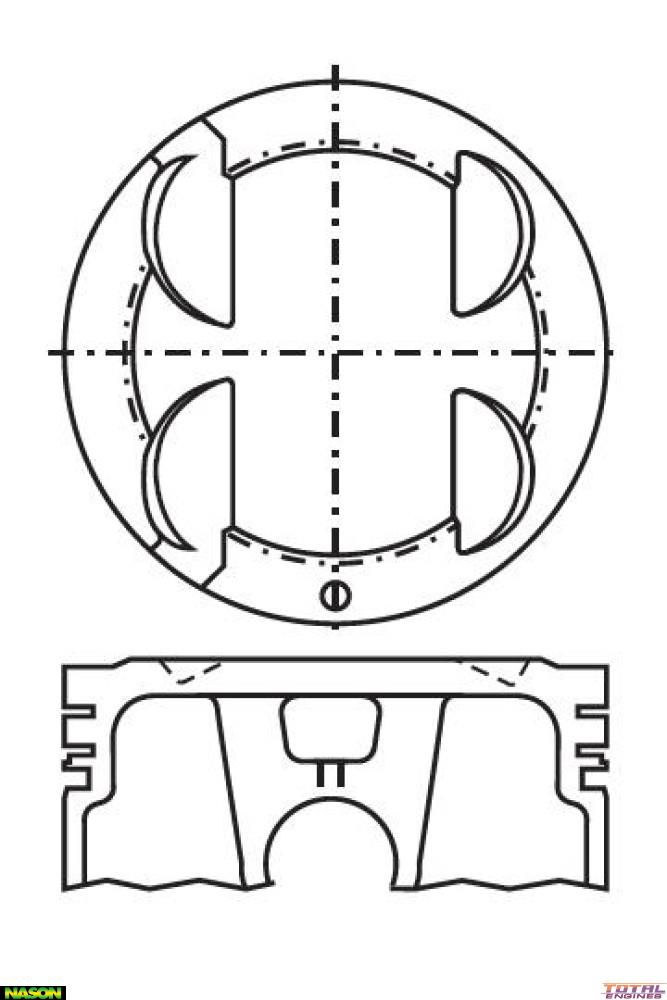

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize Dome Top With Four Valve Reliefs

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 83.00mm
Size: 0.50mm / .020"
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 61.50mm
Comp Height: 30.60mm + 0.50mm
Pin Size: 20.00mm x 57.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4651
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Ford Laser KF (1.8 Litre 4 Cyl BP SOHC 16v):
  • TX3 U#5R FWD Hatchback 2 Door [08/1990 to 10/1994] 92KW With Manual Transmission
Ford Laser KJ (1.8 Litre 4 Cyl BP SOHC 16v):
  • Ghia, Glxi, LXI SGNM FWD Sedan 4 Door [10/1994 to 12/1998] 92KW With Auto or Manual Transmission
  • Lynx SGPM FWD Hatchback 2 Door [10/1994 to 11/1996] 92KW With Auto or Manual Transmission
  • SGPM FWD Hatchback 4 Door [10/1994 to 12/1998] 92KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
