Nason Piston & ring set Fits Ford Mondeo MA TDCi EXXGB Hatchback [05/2010 to 04/2015] (2.0L TXBA (D4204T7) 4 Cyl DOHC Turbo CRD)

Name: Nason Piston & ring set Fits Ford Mondeo MA TDCi EXXGB Hatchback [05/2010 to 04/2015] (2.0L TXBA (D4204T7) 4 Cyl DOHC Turbo CRD)
Brand: Nason
SKU: TE1380556
Availability: OutOfStock

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, STD Size

Out Of Stock

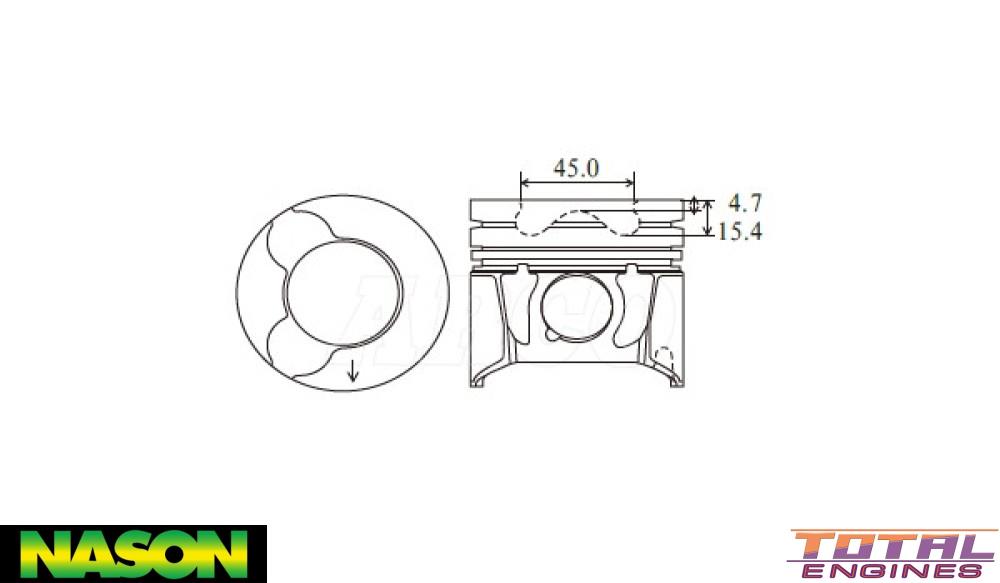

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	85.00mm
Size:	Std
Head Type:	Dish Top
Piston Type:	Cast
Length:	80.70mm
Comp Height:	46.70mm - 4.70mm - 15.40mm
Pin Size:	28.00mm x 70.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	3.50mm Double Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

This part will fit the following Vehicles:

Ford Mondeo MA (2.0 Litre 4 Cyl TXBA (D4204T7) DOHC 16v):

TDCi EXXGB FWD Hatchback 4 Door [05/2010 to 04/2015] 120KW With Dual Clutch Transmission
