Nason Piston & pin set Fits Mazda 323 BF BF5S Hatchback [01/1985 to 12/1989] (1.5L E5 4 Cyl SOHC CARB)

Name: Nason Piston & pin set Fits Mazda 323 BF BF5S Hatchback [01/1985 to 12/1989] (1.5L E5 4 Cyl SOHC CARB)
Brand: Nason
SKU: TE1324290
Availability: OutOfStock

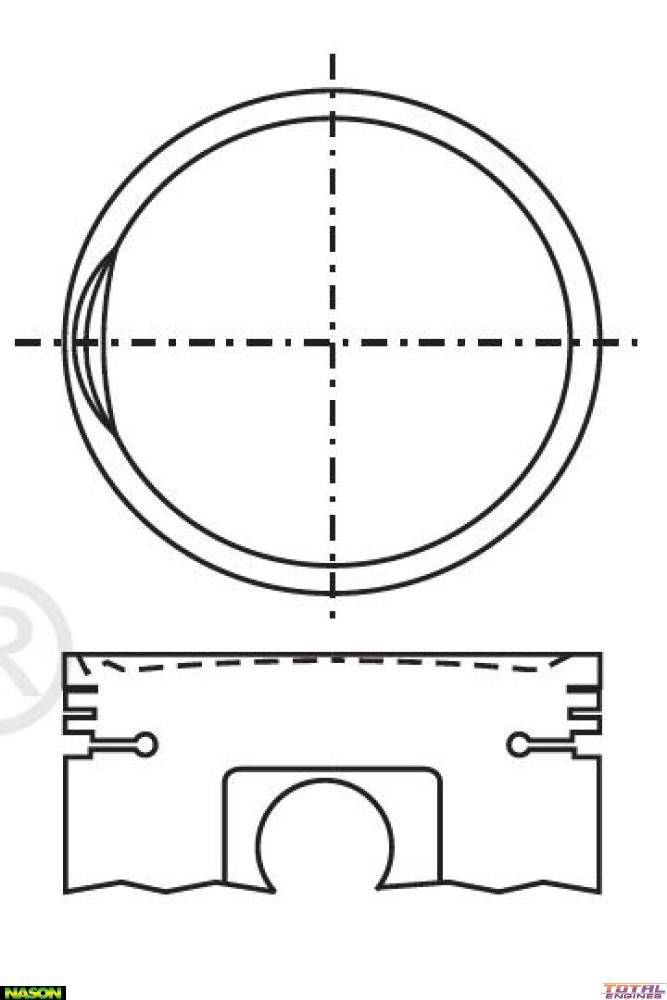

Nason Piston & pin set

Fitment Information:

Nason, 1.00mm Oversize

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	77.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top with 1 Valve Relief
Piston Type:	Cast
Length:	61.00mm
Comp Height:	29.00mm - 2.20mm
Pin Size:	20.00mm x 65.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C6154
Size:	1.00mm Oversize

This part will fit the following Vehicles:

Mazda 323 BD (1.5 Litre 4 Cyl E5 SOHC 8v):

BD105 FWD Hatchback 2 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission
BD105 FWD Hatchback 4 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission
BD105 FWD Sedan 4 Door [03/1981 to 09/1985] 54KW With Auto or Manual Transmission

Mazda 323 BF (1.5 Litre 4 Cyl E5 SOHC 8v):

BF5S FWD Hatchback 4 Door [01/1985 to 12/1989] With Auto or Manual Transmission
