Ford >> Spectron >> (No Series) >> 2.0 Litre 4 Cyl FE SOHC 8v >> SGMW 01/1986 - 12/1988 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Spectron SGMW Van [01/1986 to 12/1988] (2.0L FE 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Nason, STD Size Flat Top With Three Valve Reliefs

Out Of Stock

Specifications
Ring Set: 2M5664 or 5664
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 67.00mm
Comp Height: 34.20mm
Length: 71.20mm
Piston Type: Cast

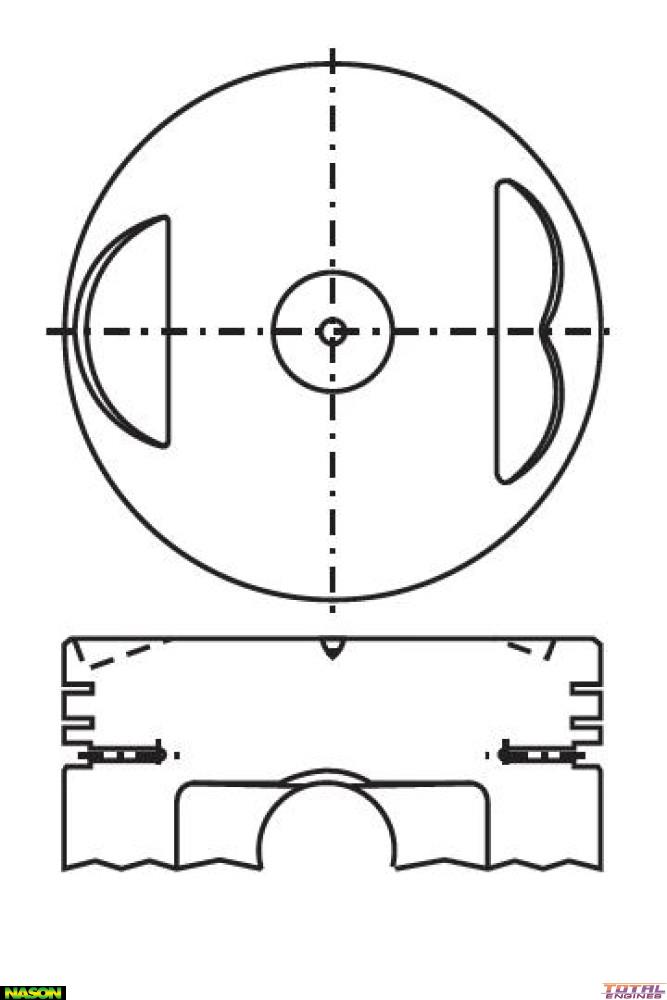

Head Type: Flat Top with 3 Valve Reliefs
Size: Std
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Ford Spectron (2.0 Litre 4 Cyl FE SOHC 8v):
  • SGME RWD Van 3 Door [01/1987 to 12/1990] With Manual Transmission
  • SGMW 4WD Van 3 Door [01/1986 to 12/1988] With Manual Transmission

Description

Nason, STD Size
