Ford >> Telstar >> AR >> 2.0 Litre 4 Cyl FE SOHC 8v >> TX5 UG7H 05/1983 - 11/1987 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Telstar AR TX5 UG7H Hatchback [05/1983 to 11/1987] (2.0L FE 4 Cyl SOHC CARB)

Part
Nason logo

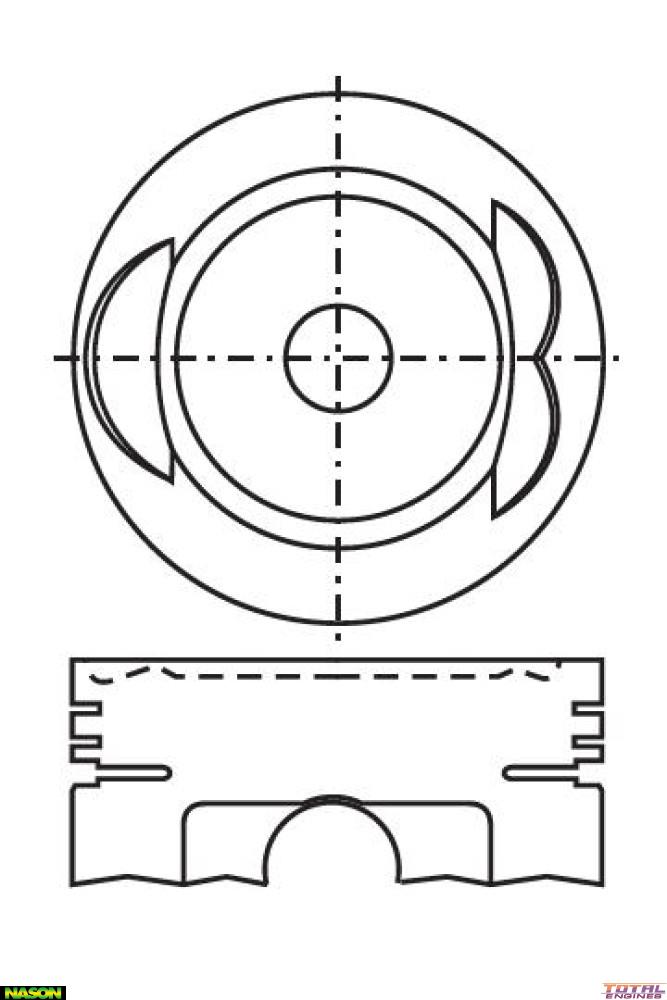

Nason Piston & pin set

$218.79

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 3 Valve Reliefs
Piston Type: Cast
Length: 71.10mm
Comp Height: 34.10mm - 2.70mm
Pin Size: 22.00mm x 67.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5664 or 5664
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Ford Telstar AR (2.0 Litre 4 Cyl FE SOHC 8v):
  • GL, S UG3H FWD Sedan 4 Door [03/1983 to 09/1987] 70KW With Auto or Manual Transmission
  • TX5 UG7H FWD Hatchback 4 Door [05/1983 to 11/1987] 70KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
