Ford >> Telstar >> AT >> 2.0 Litre 4 Cyl FE SOHC 8v >> TX5 SHWN 10/1987 - 10/1989 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Telstar AT TX5 SHWN Hatchback [10/1987 to 10/1989] (2.0L FE 4 Cyl SOHC CARB)

Part
Nason logo

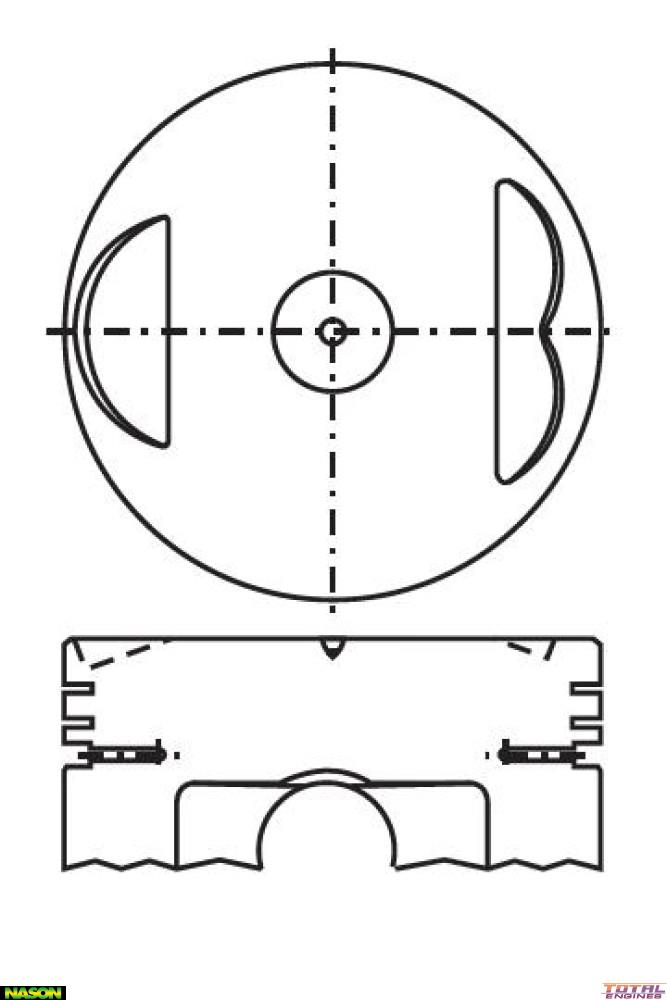

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: 1.50mm / .060"
Head Type: Flat Top with 3 Valve Reliefs
Piston Type: Cast
Length: 71.20mm
Comp Height: 34.20mm
Pin Size: 22.00mm x 67.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5664 or 5664
Size: 1.50mm Oversize

Tick This part will fit the following Vehicles:

Ford Telstar AT (2.0 Litre 4 Cyl FE SOHC 8v):
  • GL SHVN FWD Sedan 4 Door [10/1987 to 10/1989] 68KW With Auto or Manual Transmission
  • TX5 SHWN FWD Hatchback 4 Door [10/1987 to 10/1989] With Auto or Manual Transmission

Description

Nason, 1.50mm Oversize
