Ford >> Transit >> VM >> 2.2 Litre Inline 4 2.2DT DOHC 16v >> Tourneo Trend 3XXTT 01/2014 - 12/2016 3 Door Passenger Van >> DBA Brake Rotor Street Series En-Shield Front

DBA Brake Rotor Street Series En-Shield Front Fits Ford Transit VM Tourneo Trend 3XXTT Passenger Van [01/2014 to 12/2016] (2.2L 2.2DT 4 Cyl DOHC I/C Turbo EFI)

Part
Thumbnail
Thumbnail
Thumbnail
DBA logo

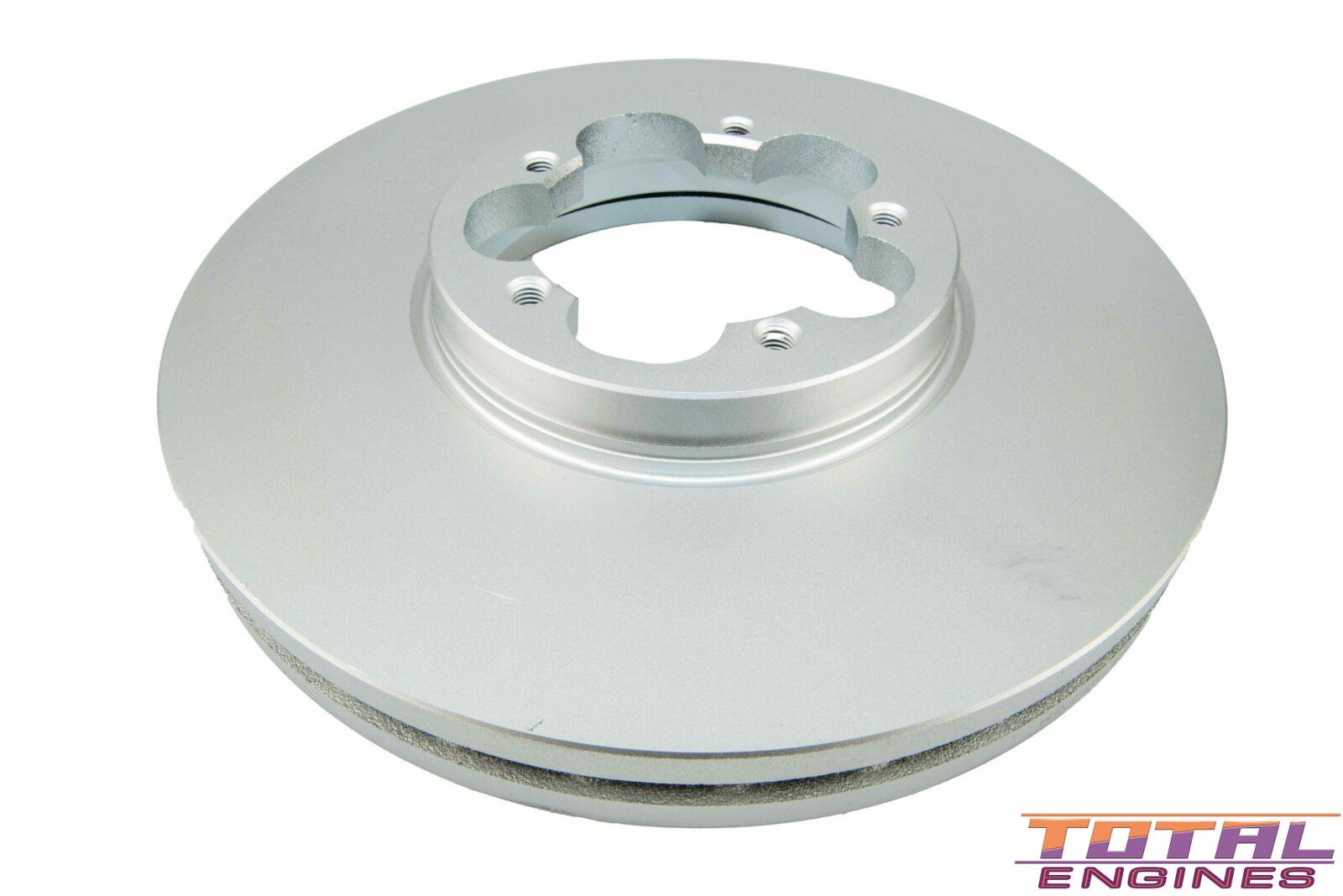

DBA Brake Rotor Street Series En-Shield Front

Fitment Information:

Street Standard En-Shield Coated 308mm

$153.65 Each / Full Set (x2): $307.30

Specifications
Product SubVariant: En-Shield
Axle: Front
Vane Design: Pillar Post Vents
Outer diameter[mm]: 308
Height [mm]: 55.4
Brake Disc Thickness [mm]: 33
Minimum Thickness [mm]: 30
Centering Diameter [mm]: 93
Number of Holes: 5
Pitch Circle Ø: 111.50
Uom: Each
Surface Design: Plain
Size: 308mm
Size: M10 Thread X 308mm ( 111.5mm PCD )
Size: 308x55.4x33x30x93x5 330 / 350 111.5mm PCD
Size: 308mm ( 330 & 350 ) 111.5mm PCD
Size: 308mm Check all Specs
Size: 308mm ( 111.5mm PCD )

Tick This part will fit the following Vehicles:

Ford Transit VM (2.2 Litre Inline 4 2.2DT DOHC 16v):
  • Tourneo Trend 3XXTT FWD Passenger Van 3 Door [01/2014 to 12/2016] 114KW With Manual Transmission

Description

Street Standard En-Shield Coated
