Ford >> Transit >> VM >> 2.2 Litre 4 Cyl QVFA DOHC 16v >> SWB/MWB XXXBD 10/2006 - 06/2010 3 Door Van >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Transit VM SWB/MWB XXXBD Van [10/2006 to 06/2010] (2.2L QVFA 4 Cyl DOHC Turbo EFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings - 48.40 Comp Height

$556.63

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl
Piston Type: Cast
Length: 74.80mm

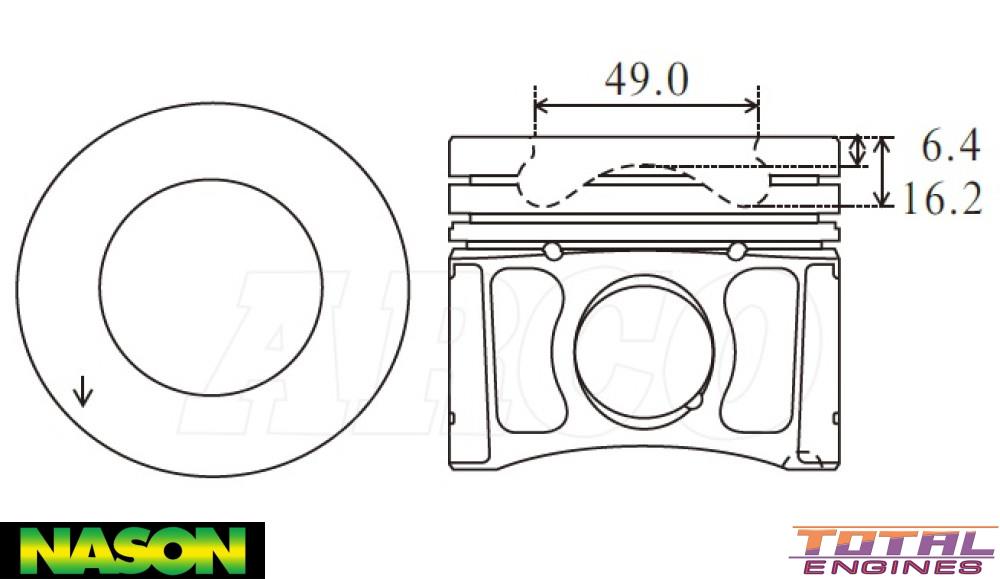

Comp Height: 48.40mm, -6.40mm, -16.20mm
Combustion Bowl OD: 49.00mm
Pin Size: 30.00mm x 67.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50068-0.50mm X 1

Tick This part will fit the following Vehicles:

Ford Transit VM (2.2 Litre 4 Cyl QVFA DOHC 16v):
  • LWB XXXTT FWD Van 3 Door [10/2006 to 06/2010] 81KW With Manual Transmission
  • LWB XXXTT FWD Van 3 Door [10/2006 to 06/2010] 81KW With Manual Transmission
  • SWB/MWB XXXBD FWD Van 3 Door [10/2006 to 06/2010] 81KW With Manual Transmission
  • SWB/MWB XXXTT FWD Van 3 Door [10/2006 to 06/2010] 81KW With Manual Transmission
  • SWB/MWB XXXTT FWD Van 3 Door [10/2006 to 06/2010] 81KW With Manual Transmission

Description

Suits Ranger, BT50 & Transit With 48.40 Comp Height

Alfin, With Oil Gallery Cooling
