Ford >> Transit >> VM >> 2.4 Litre 4 Cyl H9FB DOHC 16v >> NXXTT 10/2006 - 02/2012 4 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Transit VM NXXTT Cab Chassis [10/2006 to 02/2012] (2.4L H9FB 4 Cyl DOHC Turbo Diesel Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

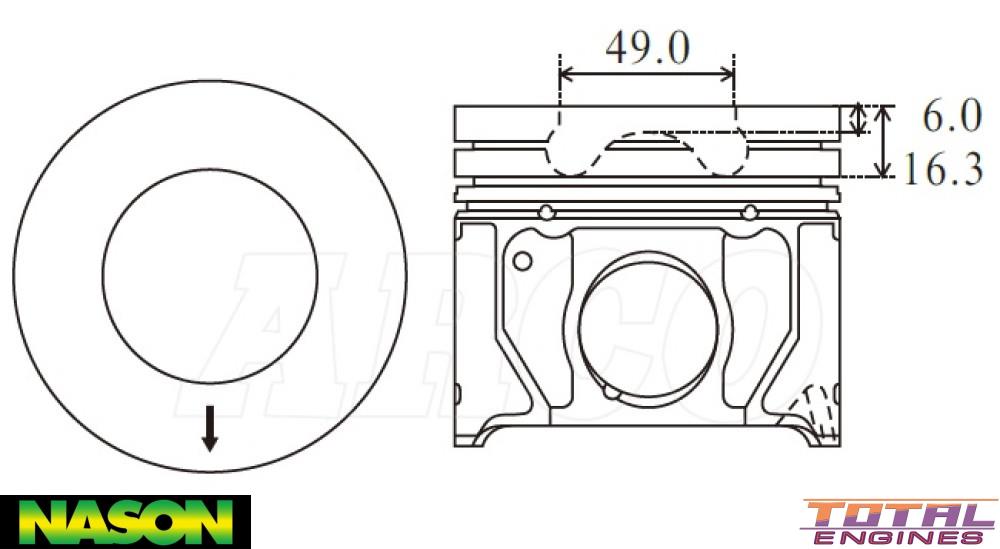

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 89.90mm
Size: STD
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 80.40mm
Comp Height: 53.50mm, -6.00mm, -16.30mm
Combustion Bowl OD: 49.00mm
Pin Size: 32.00mm x 71.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50049-STD X 4

Tick This part will fit the following Vehicles:

Ford Transit VM (2.4 Litre 4 Cyl H9FB DOHC 16v):
  • DXXTT RWD Bus 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • FXXTT RWD Cab Chassis 2 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • Jumbo LWB High Roof XXXTT RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • LWB XXXTT RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • NXXTT RWD Cab Chassis 4 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • SWB/MWB XXXBD RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission

Description

Suits Transit VJ & VM With 101kw Or 103kw (H9FA, H9FB)

Alfin With Oil Gallery Cooling
