Holden >> Astra >> AH >> 1.8 Litre 4 Cyl Z 18 XER DOHC 16v >> AHL48 02/2006 - 03/2010 4 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Holden Astra AH AHL48 Hatchback [02/2006 to 03/2010] (1.8L Z 18 XER 4 Cyl DOHC VVT MPFI)

Part
Nason logo

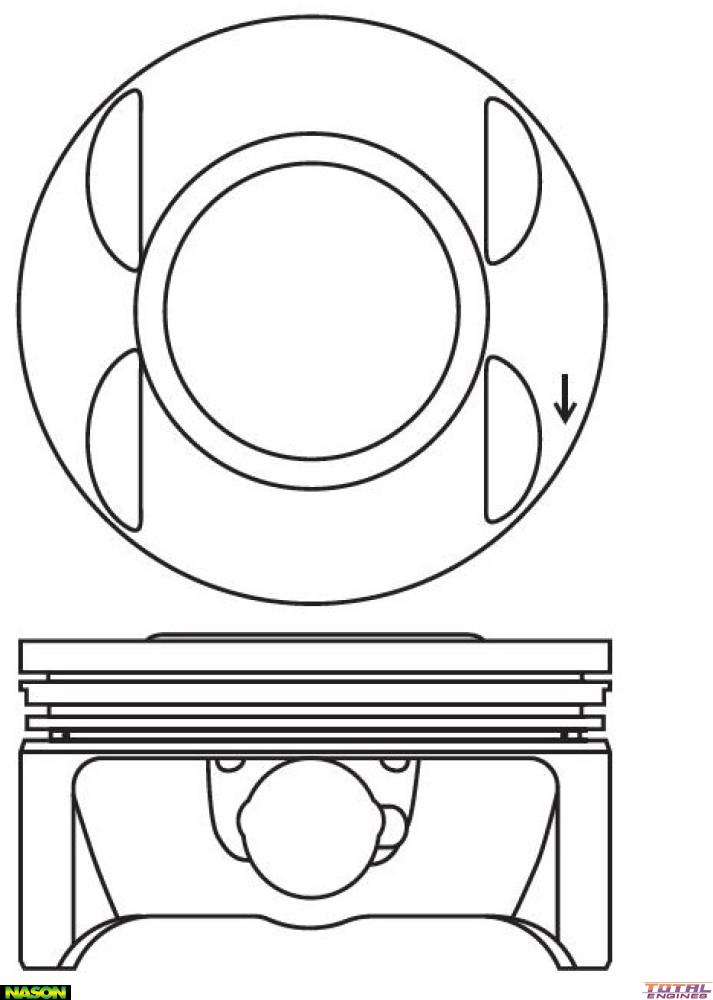

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 45.10mm
Comp Height: 25.50mm + 0.80mm
Pin Size: 19.00mm x 49.80mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5185
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Holden Astra AH (1.8 Litre 4 Cyl Z 18 XER DOHC 16v):
  • AHL35 FWD Wagon 4 Door [04/2007 to 03/2010] 103KW With Auto or Manual Transmission
  • AHL35 FWD Wagon 4 Door [04/2007 to 03/2010] 103KW With Auto or Manual Transmission
  • AHL48 FWD Hatchback 4 Door [02/2006 to 03/2010] 103KW With Auto or Manual Transmission
  • AHL48 FWD Hatchback 4 Door [04/2007 to 03/2010] 103KW With Auto or Manual Transmission
  • CD, CDX, SRI FWD 2 Door [04/2007 to 03/2010] 103KW With Auto or Manual Transmission
  • SRI AHL48 FWD Hatchback 4 Door [04/2007 to 03/2010] 103KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
