Holden >> Caprice >> WN >> 6.0 Litre V8 L77 (AFM) OHV 16v >> V 05/2013 - 09/2015 4 Door Sedan >> Nason Cylinder head - assembled

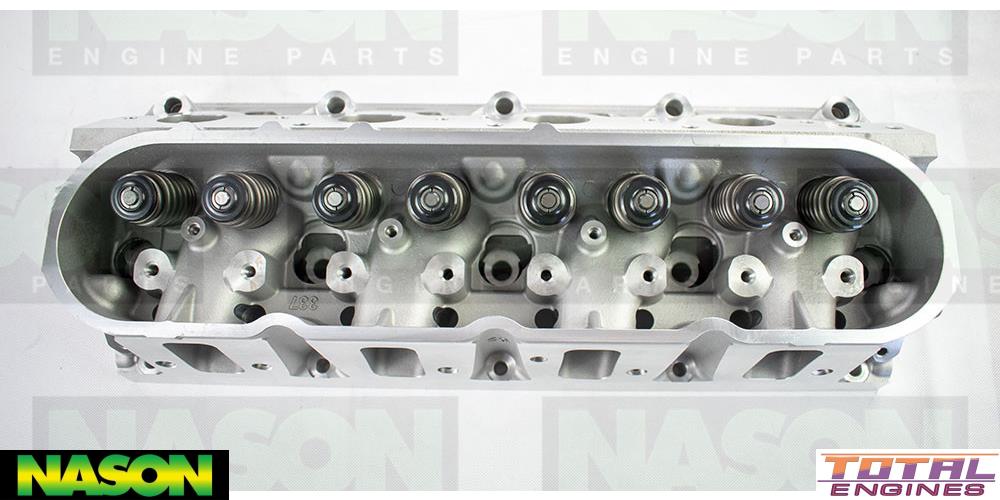

Nason Cylinder head - assembled Fits Holden Caprice WN V Sedan [05/2013 to 09/2015] (6.0L L77 (AFM) V8 OHV MPFI)

Part
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Nason logo

Nason Cylinder head - assembled

Fitment Information:

Assembled

Out Of Stock

Specifications
Combustion Chamber Volume: 68cc
Intake Runner Volume: 262cc
Intake Port Size H x W: 2.585" x 1.185"/65.66mm x 30.10mm
Exhaust Runner Volume: 85cc
Exhaust Port Size H x W: 1.46" x 1.60"/37.08mm x 40.64mm D Port
Intake Valve Size: 2.165"/54.99mm
Exhaust Valve Size: 1.589"/40.38mm
Valve Length: Standard Length
Valve Guide Seal Diameter: 0.502"/12.75mm
Valve Guide Material: Cast Iron
Maximum Valve Spring Diameter: 1.340"/34.04mm

Tick This part will fit the following Vehicles:

Holden Calais VE (6.0 Litre V8 L77 (AFM) OHV 16v):
  • RWD Sedan 4 Door [09/2010 to 04/2013] 260KW With Auto Transmission
  • Sportwagon RWD Wagon 4 Door [09/2010 to 04/2013] 260KW With Auto Transmission
Holden Caprice WM (6.0 Litre V8 L77 (AFM) OHV 16v):
  • RWD Sedan 4 Door [09/2010 to 04/2013] 260KW With Auto Transmission
Holden Caprice WN (6.0 Litre V8 L77 (AFM) OHV 16v):
  • V RWD Sedan 4 Door [05/2013 to 09/2015] 270KW With Auto Transmission
Holden Commodore VE (6.0 Litre V8 L77 (AFM) OHV 16v):
  • SS, SS-V RWD Ute 2 Door [09/2010 to 04/2013] 260KW With Auto Transmission
  • SS, SS-V RWD Sedan 4 Door [09/2010 to 04/2013] 260KW With Auto Transmission
  • SS, SS-V Sportwagon RWD Wagon 4 Door [09/2010 to 04/2013] 260KW With Auto Transmission

Description

Assembled Head - Suits Engines With Rectangle Intake Ports

Includes :

Cylinder Head

Valves Inlet & Exhaust

Valve Springs

Valve Spring Retainers

Valve Spring Seats

Valve Collets

Valve Stem Seals

Flow Data @ 28"(CFM) With 2.165" & 1.600" Valves

Intake

@.200" = 132

@.300" = 200

@.400" = 256

@.500" = 289

@.600" = 302

@.700" = 314

Exhaust

@.200" = 106

@.300" = 150

@.400" = 181

@.500" = 202

@.600" = 213

@.700" = 219
