Holden >> Jackaroo >> L5 >> 3.1 Litre 4 Cyl 4JG2-TC OHV 8v >> UBS69 04/1992 - 02/1998 4 Door SUV >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Holden Jackaroo L5 UBS69 SUV [04/1992 to 02/1998] (3.1L 4JG2-TC 4 Cyl OHV Turbo Diesel Inj)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

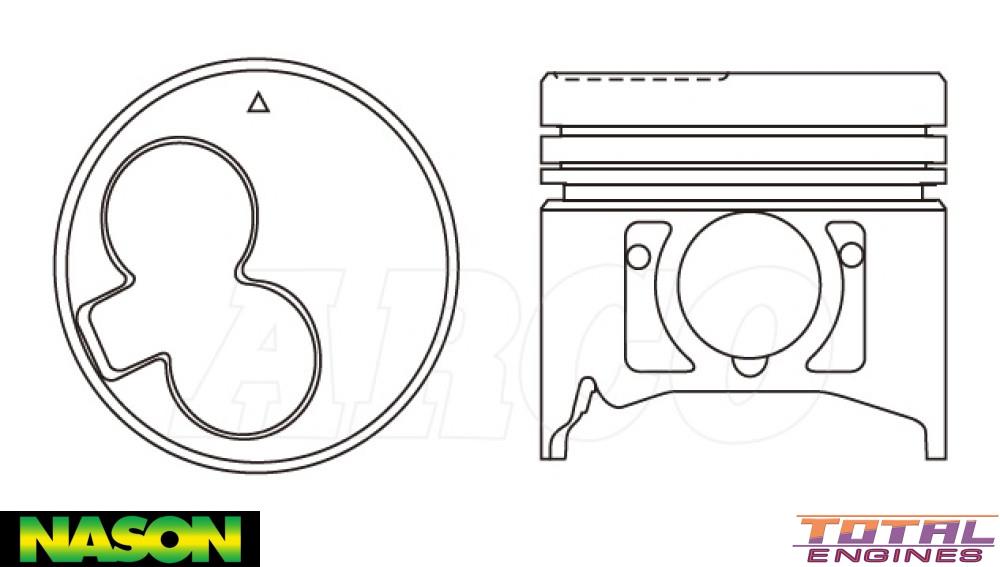

Pistons Only- Does not Include Rings - Piston Crown With Triangle Marker, 1.7mm Depth Cut Out

$701.42

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Head Type: Flat Top Clover Leaf
Piston Type: Cast
Length: 89.20mm
Comp Height: 49.20mm, -2.70mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 32607-STD
Size: 1.7mm Depth Cut Out

Tick This part will fit the following Vehicles:

Holden Jackaroo L5 (3.1 Litre 4 Cyl 4JG2-TC OHV 8v):
  • UBS69 4WD SUV 4 Door [04/1992 to 02/1998] 84KW With Manual Transmission With: Suits Piston Crown With Triangle Marker

Description

Product Description: Nason Piston & Pin Set STD Size

Elevate the performance of your engine with the Nason Piston & Pin Set, designed specifically for select Isuzu vehicles. This high-quality kit includes everything you need for a reliable and efficient cylinder block assembly, featuring precision-engineered components that ensure durability and optimal engine function.

Key Features:

  • Perfect Fit: Tailored to meet the specifications of Isuzu Bighorn UBS 3.1L (12/1991 to 01/1998) and Isuzu MU UCS 3.1L, this piston set guarantees compatibility with a piston crown that bears the triangle marker.
  • Premium Materials: Crafted from durable cast material, the pistons are engineered for performance, offering a flat top clover leaf head type that enhances combustion efficiency.
  • Comprehensive Set: The kit includes 4 pistons and pins designed to match the standard bore size of 95.40 mm, ensuring you have everything you need for a successful installation.
  • Designed for Cooling: The innovative Alfin design and oil gallery cooling facilitate superior heat management, improving engine reliability during extended use.
  • Detailed Specifications:
  • Piston Length: 89.20 mm
  • Compression Height: 49.20 mm, -2.70 mm
  • Pin Size: 34.00 mm x 78.00 mm (full floating pin type)
  • Ring Set Number: 32607-STD
  • Ring Widths: Top Ring - 2.50 mm, 2nd Ring - 2.00 mm, Oil Ring - 4.00 mm
  • Cut Out Size: 1.7 mm depth cut out for optimal combustion bowl performance.

IMPORTANT Fitment Information:

This piston and pin set is specifically designed for the following vehicles:

  • Fits:
  • Isuzu Bighorn UBS 3.1L [12/1991 to 01/1998]
  • Isuzu MU UCS 3.1L

WARNING! This product will NOT FIT:

  • Isuzu Bighorn UBS 2.8L [10/1987 to 11/1991]
  • Isuzu Bighorn UBS 3.0L [02/1998 Onwards]

Make the smart choice for your engine rebuilds or modifications with the Nason Piston & Pin Set STD Size. Experience the power of reliable performance and efficiency — order yours today!
