Holden >> Jackaroo >> U8 >> 3.0 Litre 4 Cyl 4JX1-T DOHC 16v >> UBS73 03/1998 - 09/2004 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Holden Jackaroo U8 UBS73 SUV [03/1998 to 09/2004] (3.0L 4JX1-T 4 Cyl DOHC Turbo EFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$696.07

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: STD

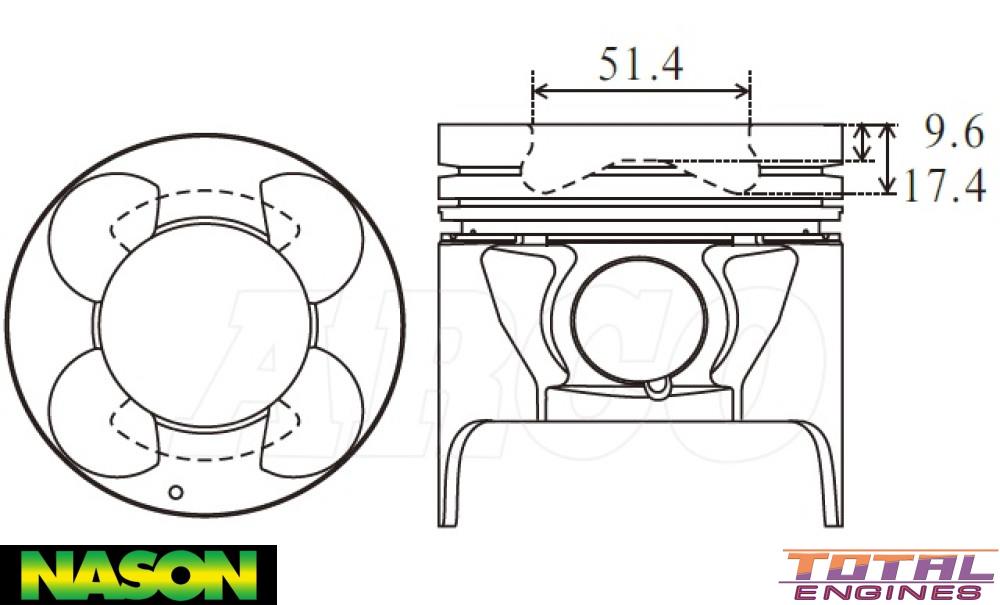

Head Type: Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 101.70mm
Comp Height: 50.00mm, -9.60mm, -17.40mm
Combustion Bowl OD: 51.40mm
Pin Size: 31.00mm x 75.90mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 32680-STD

Tick This part will fit the following Vehicles:

Holden Jackaroo U8 (3.0 Litre 4 Cyl 4JX1-T DOHC 16v):
  • UBS73 4WD SUV 4 Door [03/1998 to 09/2004] 118KW With Auto or Manual Transmission

Description

Suits 4JX1T

Alfin, Oil Gallery Cooling, Anodized Head
