Honda >> CR-V >> IV >> 2.4 Litre 4 Cyl K24Z9 DOHC 16v >> RM4 11/2012 - 06/2017 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Honda CR-V IV RM4 SUV [11/2012 to 06/2017] (2.4L K24Z9 4 Cyl DOHC VTEC MPFI)

Part
Nason logo

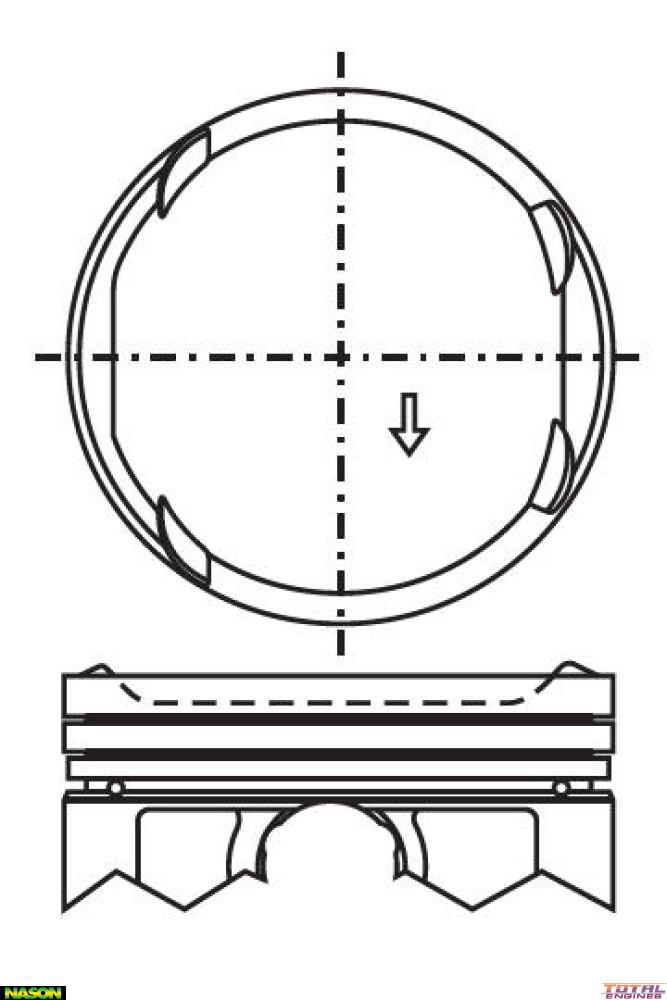

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.00mm
Size: Std
Head Type: Dome Top with 4 Valve Reliefs
Piston Type: Cast
Length: 57.40mm
Comp Height: 29.10mm + 4.20mm
Pin Size: 21.97mm x 52.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5147

Tick This part will fit the following Vehicles:

Honda CR-V IV (2.4 Litre 4 Cyl K24Z9 DOHC 16v):
  • RM4 4WD SUV 4 Door [11/2012 to 06/2017] 140KW With Auto Transmission
Honda CR-V RM (2.4 Litre 4 Cyl K24Z9 DOHC 16v):
  • RM4 4WD SUV Compact 4 Door [11/2012 to 06/2017] 140KW With Auto Transmission

Description

Nason, STD Size
