Honda >> Civic >> AN >> 1.5 Litre 4 Cyl EW2 SOHC 12v >> 01/1976 - 12/1978 4 Door Wagon >> Nason Piston & pin set

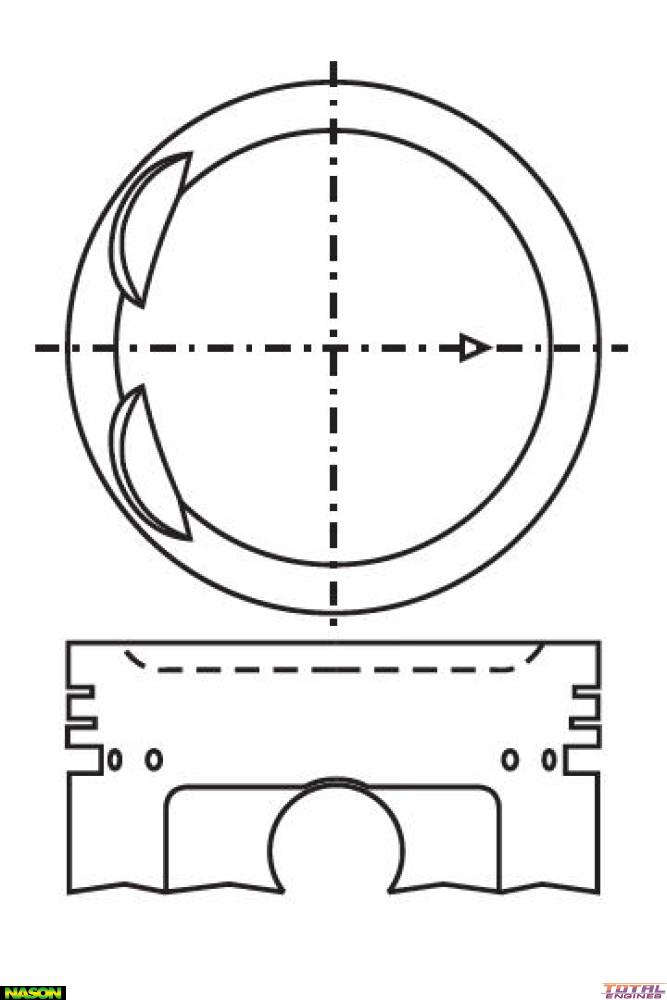

Nason Piston & pin set Fits Honda Civic AN Wagon [01/1976 to 12/1978] (1.5L EW2 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 74.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Relief
Piston Type: Cast
Length: 59.60mm
Comp Height: 29.70mm - 3.50mm
Pin Size: 19.00mm x 46.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4396
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Honda Civic AH (1.5 Litre 4 Cyl EW2 SOHC 12v):
  • FWD Hatchback 2 Door [01/1984 to 12/1988] With Auto or Manual Transmission
Honda Civic AN (1.5 Litre 4 Cyl EW2 SOHC 12v):
  • FWD Wagon 4 Door [01/1976 to 12/1978] With Auto or Manual Transmission
Honda Civic III (1.5 Litre 4 Cyl EW2 SOHC 12v):
  • AK FWD Sedan 4 Door [01/1983 to 12/1988] With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
