Nason Piston & pin set Fits Honda Civic EG GL EG4 Hatchback [09/1991 to 09/1993] (1.5L D15B4 4 Cyl SOHC TWIN CARB)

Name: Nason Piston & pin set Fits Honda Civic EG GL EG4 Hatchback [09/1991 to 09/1993] (1.5L D15B4 4 Cyl SOHC TWIN CARB)
Brand: Nason
SKU: TE1324581
Availability: OutOfStock

Nason Piston & pin set

Fitment Information:

Nason, STD Size

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	75.00mm
Size:	Std

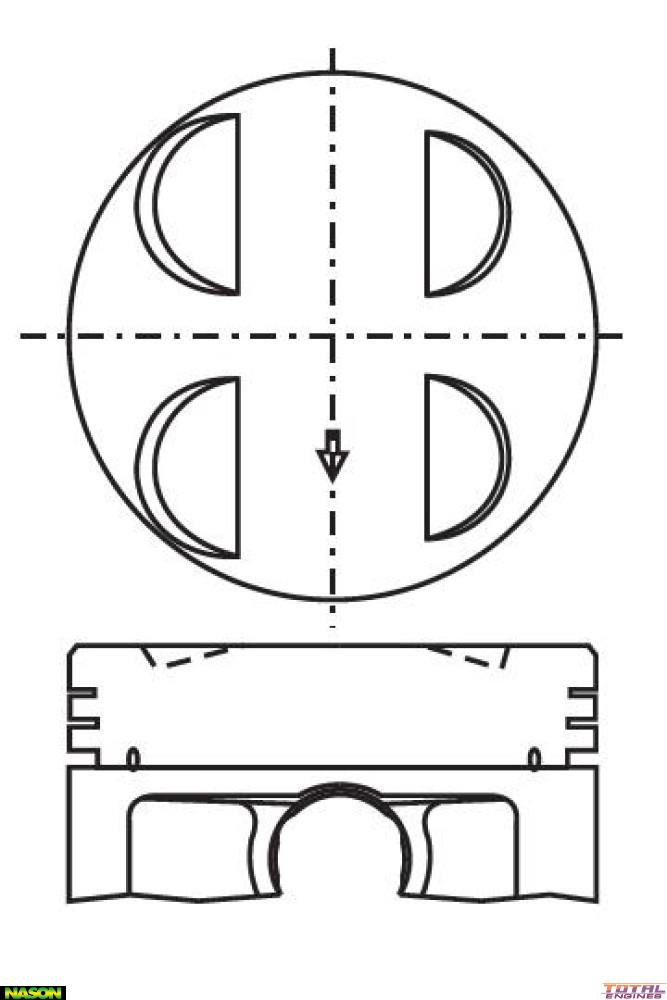

Head Type:	Flat Top with 4 Vale Reliefs
Piston Type:	Cast
Length:	60.80mm
Comp Height:	30.70mm
Pin Size:	19.00mm x 56.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4640

This part will fit the following Vehicles:

Honda Civic ED (1.5 Litre 4 Cyl D15B4 SOHC 16v):

ED3 FWD Sedan 4 Door [11/1987 to 10/1993] 72KW With Auto or Manual Transmission

Honda Civic EG (1.5 Litre 4 Cyl D15B4 SOHC 16v):

GL EG4 FWD Hatchback 2 Door [09/1991 to 09/1993] 72KW With Auto or Manual Transmission
GL EG8 FWD Sedan 4 Door [10/1991 to 10/1993] 72KW With Auto or Manual Transmission

Honda Civic II (1.5 Litre 4 Cyl D15B4 SOHC 16v):

4WD EE3 4WD Wagon 4 Door [05/1988 to 05/1989] 72KW With Manual Transmission

Honda Civic IV (1.5 Litre 4 Cyl D15B4 SOHC 16v):

ED6 FWD Hatchback 2 Door [11/1987 to 10/1993] 72KW With Auto or Manual Transmission
