Honda >> Civic >> EK >> 1.6 Litre 4 Cyl D16Y6 SOHC 16v >> VTI-S EK1 10/1995 - 09/2000 2 Door Hatchback >> ACL Race Series Conrod bearing set-performance

ACL Race Series Conrod bearing set-performance Fits Honda Civic EK VTI-S EK1 Hatchback [10/1995 to 09/2000] (1.6L D16Y6 4 Cyl SOHC VTEC EFI)

Part
Thumbnail
Thumbnail
Thumbnail
Thumbnail
ACL Race Series logo

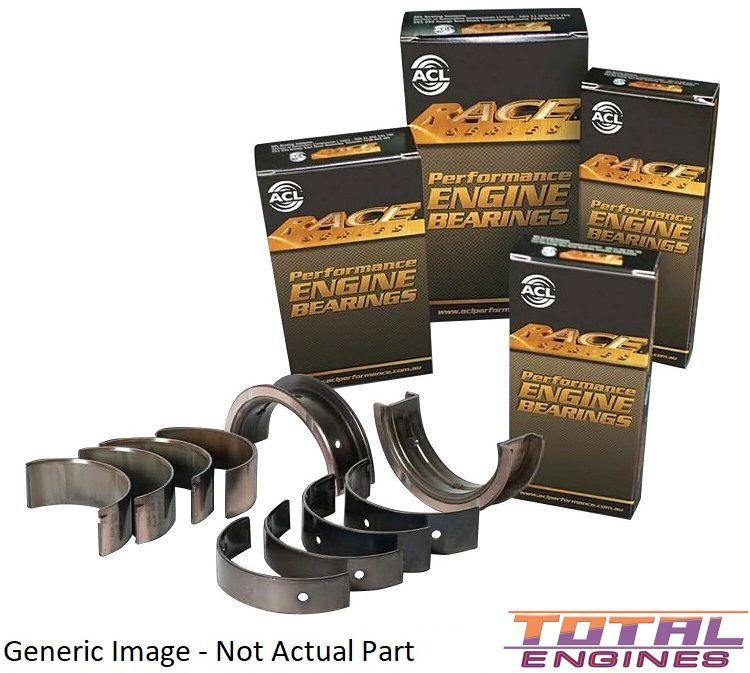

ACL Race Series Conrod bearing set-performance

Out Of Stock

Specifications
Material: Race Series (Tri-Metal)
Position: All
Std Shaft Diam: 1.7709"/1.7717" (44.980mm/45.000mm)
Oil Clearance: TBA
Maximum Wall: 0.0590" (1.499mm)
Housing Bore: 1.8898"/1.8905" (48.000mm/48.020mm)
Max Length: 0.7280" (18.500mm)

Tick This part will fit the following Vehicles:

Honda Civic EK (1.6 Litre 4 Cyl D16Y6 SOHC 16v):
  • VTI-S EK1 FWD Hatchback 2 Door [10/1995 to 09/2000] 93KW With Auto or Manual Transmission
  • VTI-S EK1 FWD Sedan 4 Door [10/1995 to 09/2000] 93KW With Auto or Manual Transmission
