Honda >> Civic >> EK >> 1.6 Litre 4 Cyl D16Y6 SOHC 16v >> VTI-S EK1 10/1995 - 09/2000 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Honda Civic EK VTI-S EK1 Hatchback [10/1995 to 09/2000] (1.6L D16Y6 4 Cyl SOHC VTEC EFI)

Part
Nason logo

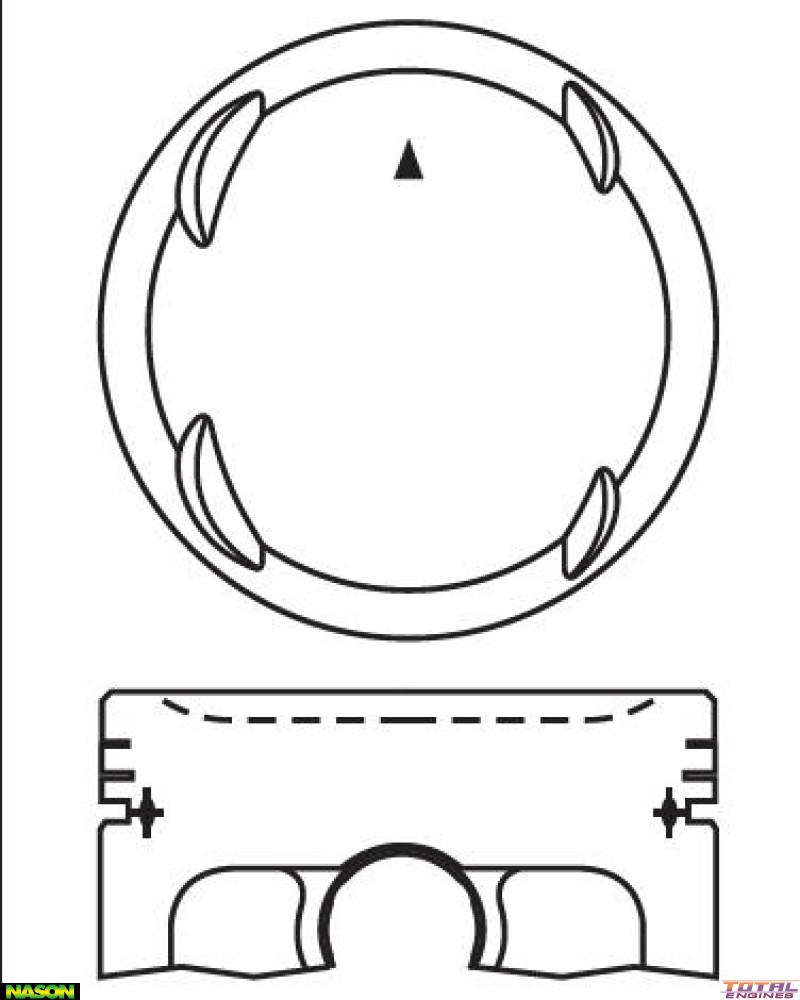

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 50.00mm
Comp Height: 30.00mm - 3.40mm
Pin Size: 19.00mm x 56.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.00mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.80mm
Ring Set: 2C4974
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Honda Civic EK (1.6 Litre 4 Cyl D16Y6 SOHC 16v):
  • VTI-S EK1 FWD Hatchback 2 Door [10/1995 to 09/2000] 93KW With Auto or Manual Transmission
  • VTI-S EK1 FWD Sedan 4 Door [10/1995 to 09/2000] 93KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
