Nason Piston & pin set Fits Honda Civic IV VTi EG5 Hatchback [10/1993 to 09/1995] (1.6L D16Y1 4 Cyl SOHC VTEC MPFI)

Name: Nason Piston & pin set Fits Honda Civic IV VTi EG5 Hatchback [10/1993 to 09/1995] (1.6L D16Y1 4 Cyl SOHC VTEC MPFI)
Brand: Nason
SKU: TE1325872
Availability: OutOfStock

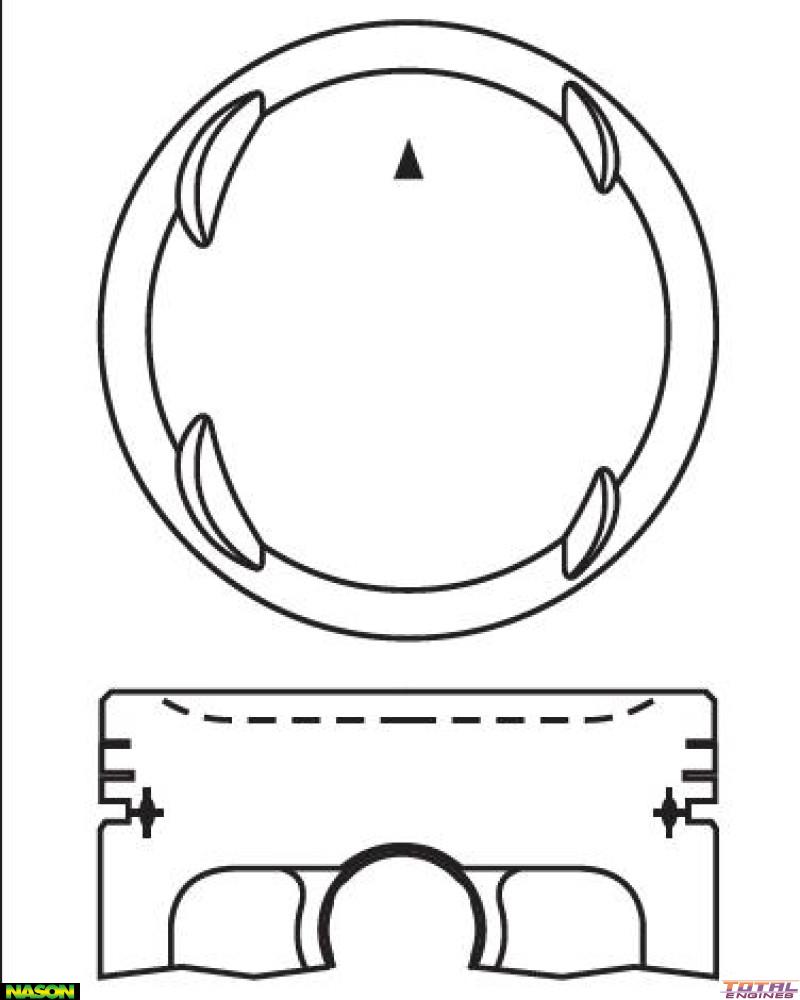

Nason Piston & pin set

Fitment Information:

Nason, STD Size

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	75.00mm
Size:	Std
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	50.00mm
Comp Height:	30.00mm - 3.40mm
Pin Size:	19.00mm x 56.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.00mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.80mm
Ring Set:	2C4974

This part will fit the following Vehicles:

Honda Civic EH (1.6 Litre 4 Cyl D16Y1 SOHC 16v):

VEi EH9 FWD Sedan 4 Door [06/1993 to 09/1995] 66KW With Auto or Manual Transmission

Honda Civic IV (1.6 Litre 4 Cyl D16Y1 SOHC 16v):

VTi EG5 FWD Hatchback 2 Door [10/1993 to 09/1995] 96KW With Auto or Manual Transmission
