Honda >> Civic >> VII >> 1.7 Litre 4 Cyl D17A2 SOHC 16v >> EU3 10/2000 - 01/2006 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Honda Civic VII EU3 Hatchback [10/2000 to 01/2006] (1.7L D17A2 4 Cyl SOHC VTEC MPFI)

Part
Nason logo

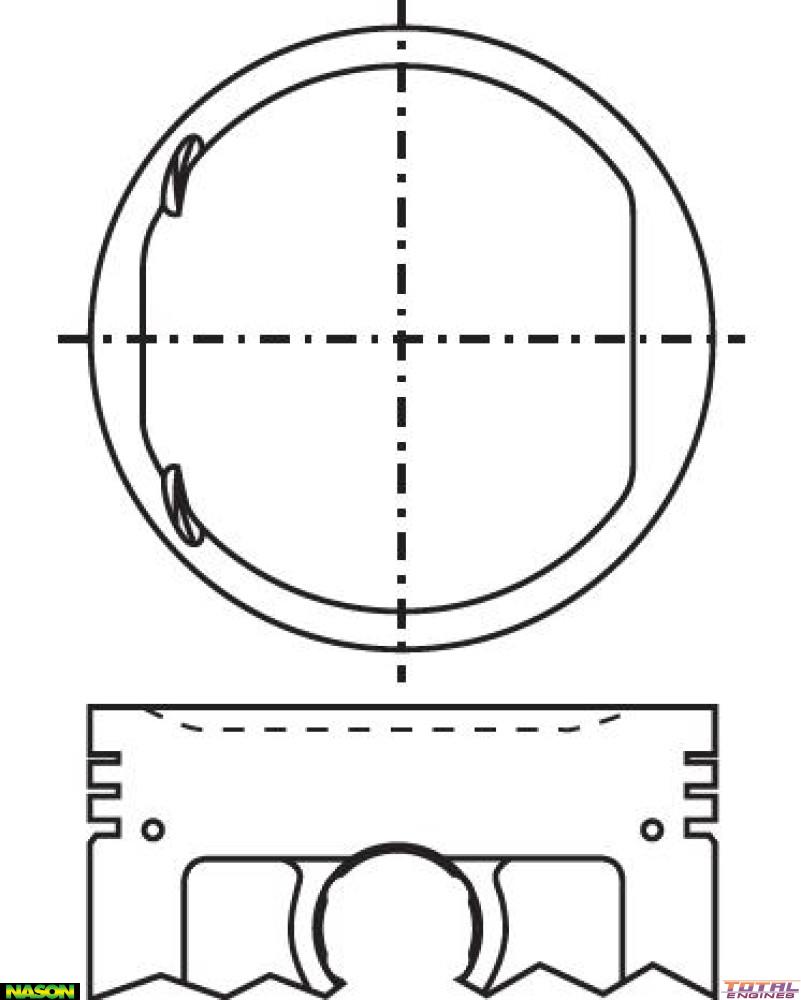

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: Std
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 46.50mm
Comp Height: 26.90mm + 2.60mm
Pin Size: 19.00mm x 56.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.00mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5111

Tick This part will fit the following Vehicles:

Honda Civic VII (1.7 Litre 4 Cyl D17A2 SOHC 16v):
  • EU3 FWD Hatchback 4 Door [10/2000 to 01/2006] 96KW With Auto or Manual Transmission

Description

Nason, STD Size
